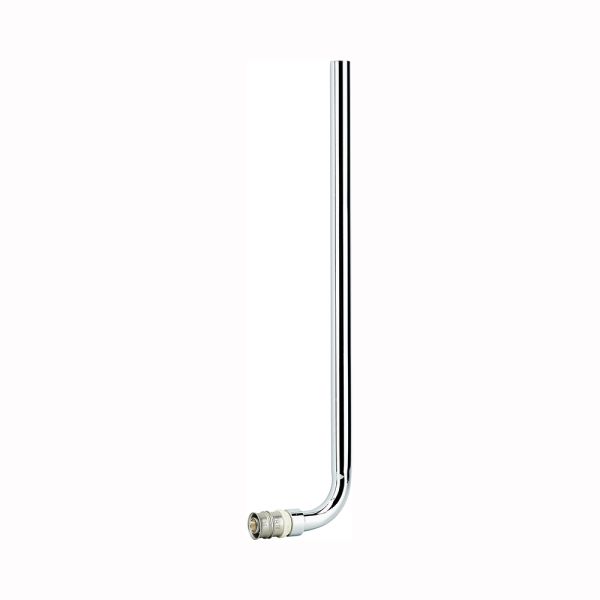

Frankische Alpex-Duo XS Radiator Connection Bend
Technical Specification
-
Product Type: Radiator connection bend
- Size: 16mm
-
Material: Dezincification-resistant brass body with nickel-plated copper pipe (15×1 mm)
-
Pressing Compatibility: F-contour and TH-contour
-
Leak Before Press Function: Compliant with DVGW standards
-
Inspection Features: Integrated large inspection holes
-
Identification: Laser-engraved pressing sleeve
- Connection: Fixed stainless steel pressing sleeve with white fixation ring
- Application: Wall or floor radiator connections in potable water and heating systems
Description
The radiator connection bend is designed for secure and efficient wall or floor radiator connections. Featuring a high-quality brass body and a nickel-plated copper pipe (15x1mm), this fitting ensures long-term durability and corrosion resistance.
The connection bend incorporates a fixed stainless steel pressing sleeve with an integrated leak function for a secure, leak-proof connection. A white fixation ring with integrated inspection holes enhances ease of installation and verification. Its optimised design allows for up to 30% greater flow rate, improving system efficiency.
With a no-calibration, three-step installation process, this fitting simplifies installation and reduces time on site. Unique laser engraving ensures easy identification for quick product selection.
Key Features
-
Optimised Flow Rate: Up to 30% greater internal cross-sectional area supports enhanced hydraulic performance
-
Leak-Before-Press Safety: Visibly detects unpressed fittings during pressure testing for added confidence
-
Durable Hybrid Construction: Nickel-plated copper and lead-free brass provide strength and corrosion resistance
-
Three-Step Installation: No calibration required—press securely in a few simple steps
-
Tool Compatibility: Supports both F and TH contour press jaws for flexible on-site application
-
Visual Position Verification: White fixation ring includes large inspection holes for precise pipe alignment
-
Permanent Marking: Laser-engraved sleeve ensures quick identification during and after installation

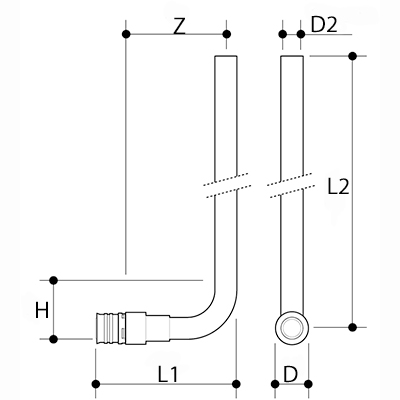

| SKU | Frankische Code | D (mm) | D (mm) | L (mm) | L (mm) | H (mm) | Z (mm) | Weight (kg) |
| 488712 | 82916733 | 16 | 15x1 | 79 | 330 | 40 | 48 | 0.102 |
