Frankische Alpex-Duo XS End Cap
Technical Specification
- Product Type: End cap
- Size: 16 - 32mm
- Material: High-performance PPSU (Polyphenylsulfone)
- Pressing Compatibility: F-contour and TH-contour
- Leak Before Press Function: Compliant with DVGW standards
- Inspection Features: Integrated inspection holes for visual confirmation
- Identification: Laser-engraved pressing sleeve
- Connection: Fixed stainless steel pressing sleeve with white fixation ring
- Application: For sealing pipe ends in drinking water and heating systems
Description

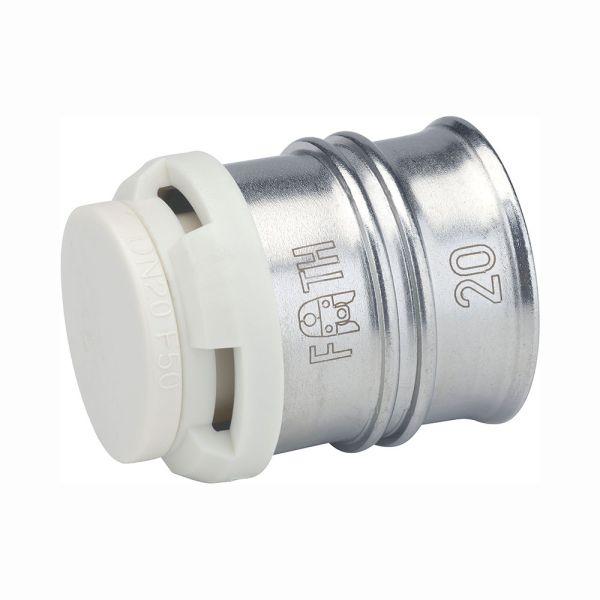

The PPSU end cap is a high-quality fitting designed to effectively seal pipe ends in water and heating system installations. Manufactured from durable, lead-free PPSU, it offers excellent resistance to high temperatures and corrosion. Featuring a white fixation ring with integrated inspection holes and a fixed stainless steel pressing sleeve, this end cap ensures a secure and leak-proof seal. The built-in leak function enhances installation safety, while the unique laser engraving allows for easy identification and traceability.
Key Features
-
Flow-Optimised Design: Up to 30% greater internal cross-section to improve hydraulic performance
-
Leak-Before-Press Safety: Detects unpressed fittings during testing for safe system commissioning
-
High-Quality PPSU Material: Lead-free and chemically resistant, ideal for hygienic installations
-
Quick and Simple Installation: No calibration needed – install in just three straightforward steps
-
Flexible Tool Compatibility: Suitable for both F and TH pressing contours using standard tools
-
Visual Fit Check: White fixation ring features large inspection holes for confirming proper pipe positioning
-
Laser Engraved Identification: Ensures clear and durable product marking for easy on-site verification

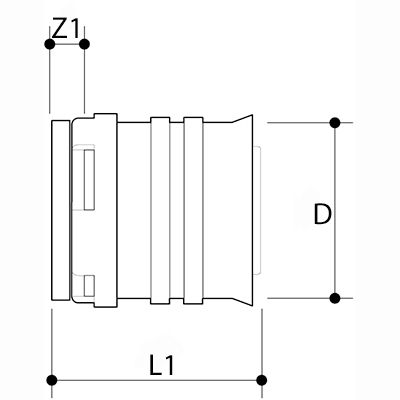

| SKU | Frankische Code | D (mm) | L (mm) | Z (mm) | Weight (kg) |
| 488677 | 82816820 | 16 | 31 | 5 | 0.012 |
| 488678 | 82820820 | 20 | 32 | 5 | 0.016 |
| 488679 | 82826820 | 26 | 42 | 6 | 0.026 |
| 488680 | 82832820 | 32 | 42 | 6 | 0.034 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
