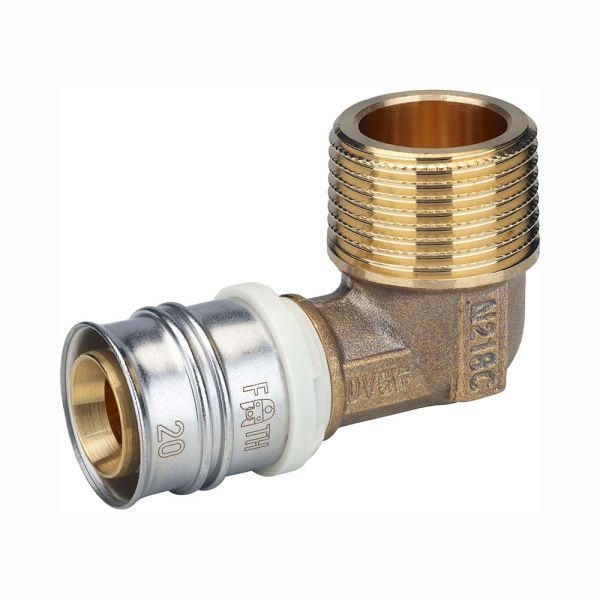

Frankische Alpex-Duo XS Elbow 90 Thread M
Technical Specifiction
- Product Type: Male thread elbow adapter (90° angle)
- Sizes: 16 - 32mm
- Thread Standard: Male thread according to DIN EN 10226-1
- Material: Dezincification-resistant, lead-free brass
- Pressing Compatibility: F-contour and TH-contour
- Leak Before Press Function: Compliant with DVGW standards
- Visual Inspection: Integrated inspection holes
- Identification: Laser-engraved for clear on-site recognition
- Connection: Fixed stainless steel pressing sleeve with white fixation ring
- Application: For drinking water and heating system installations
Description
The male thread elbow adapter is a high-performance fitting designed for drinking water and heating system installations. Manufactured from dezincification-resistant (DZR) brass, it ensures durability and long-term corrosion resistance. The adapter conforms to DIN EN 10226-1 standards and features a white fixation ring with integrated inspection holes for accurate installation. It also includes a fixed stainless steel pressing sleeve, providing a secure and leak-proof connection. The leak-before-press function enhances installation safety by making unpressed connections easily detectable.
Key Features
- Enhanced Flow Performance: Up to 30% greater internal cross-section for improved hydraulic efficiency
-
Leak Detection Assurance: The leak-before-press function helps identify unpressed joints during pressure testing
-
Premium Brass Body: Made from lead-free, dezincification-resistant brass for safe potable water use
-
Fast, Simple Installation: No calibration required—fit and press in just three steps
-
Flexible Tool Compatibility: Suitable for use with both F and TH pressing contours
-
Visual Fit Verification: White fixation ring with large inspection holes ensures proper pipe insertion
-
Laser-Engraved Marking: Simplifies identification and prevents fitting mix-ups during installation

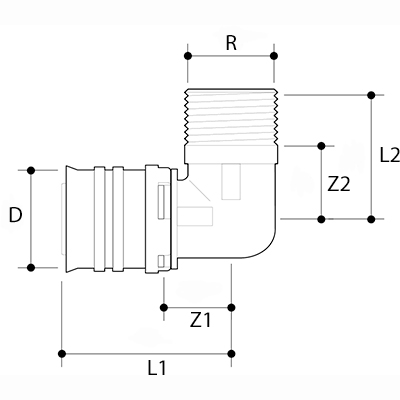

| SKU | Frankische Code | D (mm) | R (") | L (mm) | L (mm) | Z (mm) | Z (mm) | Weight (kg) |
| 488608 | 8291678201 | 16 | 1/2 | 47 | 30 | 17 | 20 | 0.075 |
| 488609 | 8292078201 | 20 | 1/2 | 48 | 30 | 17 | 20 | 0.090 |
| 488610 | 8292078301 | 20 | 3/4 | 48 | 30 | 15 | 20 | 0.103 |
| 488611 | 8292678301 | 26 | 3/4 | 62 | 36 | 21 | 25 | 0.145 |
| 488612 | 8293278401 | 32 | 1 | 57 | 43 | 21 | 20 | 0.194 |
