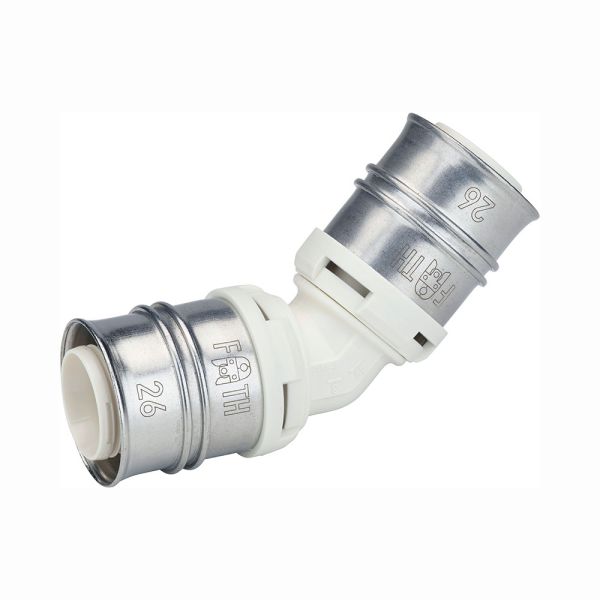

Frankische Alpex-Duo XS Elbow 45
Technical Specification
-
Product Type: 45° elbow
- Sizes: 26 - 32mm
- Operating Temperature: Up to 95°C
-
Material: High-performance PPSU (Polyphenylsulfone)
-
Pressing Compatibility: F-contour and TH-contour
-
Inspection Features: Integrated inspection holes
- Identification: Laser-engraved for easy on-site verification
-
Leak Before Press Function: Compliant with DVGW standards
- Connection: Fixed stainless steel pressing sleeves with white fixation rings
- Application: Suitable for drinking water and heating installations
Description
The Alpex-Duo XS Elbow 45° is an advanced solution for changing direction in multilayer pipe systems with maximum reliability. Constructed from durable, hygienically safe PPSU, this fitting offers excellent chemical resistance and mechanical strength. Designed for use in both drinking water and heating systems, it ensures a secure, leak-tested connection through its innovative pressing technology. With no calibration required and compatibility with standard pressing tools, the installation process is swift, clean, and highly reliable.
Key Features
- Flow-Optimised Design: Up to 30% greater internal cross-section for improved flow rates
-
Leak Detection Assurance: Integrated leak-before-press function helps identify unpressed fittings during testing
-
Premium PPSU Material: Lead-free, durable, and chemically resistant for hygienic installations
-
Quick, Tool-Compatible Installation: No calibration needed—completed in just three simple steps
-
Dual Crimping Compatibility: Works with both F and TH pressing contours using common tools
-
Visual Positioning Control: Large inspection holes on the white fixation rings ensure accurate fitting alignment
-
Laser-Marked Sleeves: Simplifies product identification and prevents misapplication on site

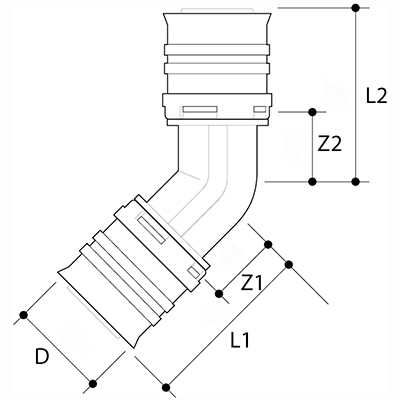

| SKU | Frankische Code | D (mm) | L (mm) | L (mm) | Z (mm) | Z (mm) | Weight (kg) |
| 488606 | 82826201 | 26 | 47 | 47 | 12 | 12 | 0.053 |
| 488607 | 82832201 | 32 | 49 | 49 | 15 | 15 | 0.069 |
