Frankische Alpex-Duo XS Adapter Thread F
Technical speification
-
Product Type: Female thread adapter
- Size: 16 - 32mm
-
Thread Standard: DIN EN 10226-1
-
Material: Dezincification-resistant, lead-free brass (silicon bronze)
-
Application: Suitable for drinking water and heating system installations
-
Connection: Fixed stainless steel pressing sleeve with white fixation ring
-
Pressing Compatibility: F-contour and TH-contour
-
Leak Before Press Function: Compliant with DVGW standards
-
Inspection Features: Integrated inspection holes for visual confirmation
-
Identification: Laser-engraved pressing sleeve
Description

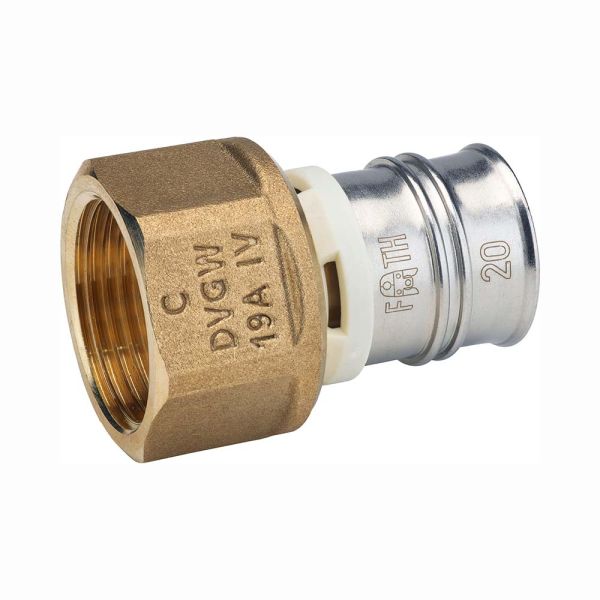

The female thread adapter is a high-quality fitting designed for potable water and heating systems. Constructed from dezincification-resistant brass, it ensures superior corrosion resistance and long-term reliability. Featuring a white fixation ring with integrated inspection holes and a fixed stainless steel pressing sleeve, this adapter provides a secure and durable connection. The built-in leak function enhances installation safety, while the unique laser engraving ensures easy identification and traceability.
Key Features
-
Optimised Flow Capacity: Internal design offers up to 30% increased cross-sectional area for improved hydraulic efficiency
-
Leak-Before-Press Safety: Instantly identifies unpressed fittings during pressure testing for added reliability
-
Lead-Free Brass Construction: Dezincification-resistant and compliant with EU drinking water regulations
-
Quick Installation: No calibration required – fitted securely in just three steps
-
Pressing Flexibility: Compatible with both F and TH contour pressing tools
-
Visual Fit Verification: White fixation ring with large inspection holes confirms proper pipe insertion
-
Laser Engraving: Clear, permanent marking supports accurate product selection on site

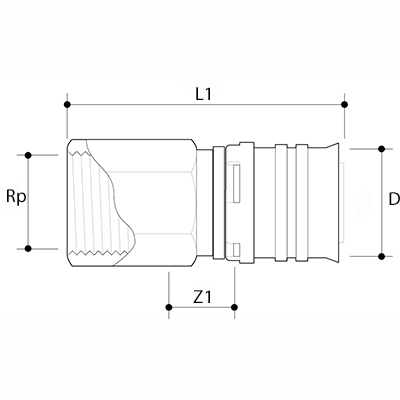

| SKU | Frankische Code | D (mm) | Rp (") | L (mm) | Z (mm) | Weight (kg) |
| 488661 | 8291677201 | 16 | 1/2 | 48 | 11 | 0.079 |
| 488662 | 8292077201 | 20 | 1/2 | 49 | 11 | 0.086 |
| 488663 | 8292077301 | 20 | 3/4 | 47 | 12 | 0.085 |
| 488664 | 8292677301 | 26 | 3/4 | 58 | 12 | 0.102 |
| 488665 | 8292677401 | 26 | 1 | 62 | 13 | 0.161 |
| 488666 | 8293277401 | 32 | 1 | 62 | 13 | 0.180 |
| 488667 | 8293277501 | 32 | 1 1/4 | 64 | 13 | 0.196 |
