Alpex L Tee 90°
Technical Specification
- Manufacturer: FRÄNKISCHE
- Material: PPSU (Polyphenylsulfone) body; stainless steel sleeves (≤63mm); mild steel sleeves (75mm)
- Operating Temperature: 95°C
- Pressure Rating: 10 bar
- Pressing Contours: F-contour (all sizes), TH-contour (for ≤32mm)
- Sizes Available: 40 x 40 x 40mm to 75 x 75 x 75mm
- Standards: DVGW W 534
- Certification: WRAS approved
Description

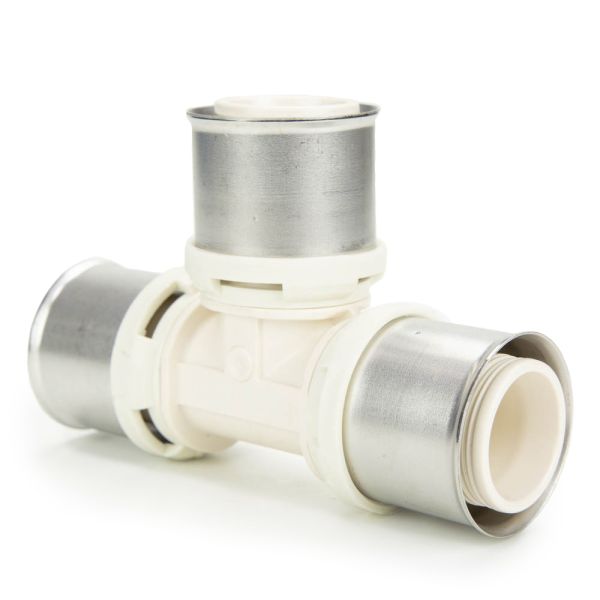

This 90° tee fitting is designed to create secure branch connections in drinking water and heating system installations. Manufactured from durable PPSU with stainless steel pressing sleeves (mild steel sleeves for 75mm sizes), it features white fixation rings with integrated inspection holes for visual verification during installation. The leak-before-press function ensures any unpressed fittings are detected during pressure testing. Compatible with F-contour press jaws, and TH-contour for sizes 32mm and smaller, this WRAS approved, lead-free fitting provides long-term reliability for both potable water and heating applications.
Key Features & Benefits
- Leak-Before-Press Function: Identifies unpressed fittings during pressure testing (1 – 6.5 bar)
- Lead-Free Construction: Certified for drinking water safety
- Visual Inspection: White fixation rings with integrated inspection holes
- Durable Build: PPSU body with stainless or mild steel pressing sleeves for long-lasting performance
- Press Compatibility: F-contour for all sizes; TH-contour for 32mm and smaller
- Versatile Use: Suitable for potable water and heating systems
- WRAS Approved: Certified for drinking water applications
| SKU | Supplier Code | D1 (mm) | D2 (mm) | D3 (mm) | L1 (mm) | L2 (mm) | L3 (mm) | Z1 (mm) | Z2 (mm) | Z3 (mm) | Weight (kg) |
| 403556 | 88440300 | 40 | 40 | 40 | 67 | 67 | 67 | 27 | 27 | 27 | 0.194 |
| 403557 | 88450300 | 50 | 50 | 50 | 80 | 80 | 80 | 31 | 31 | 31 | 0.298 |
| 403558 | 88463300 | 63 | 63 | 63 | 89 | 89 | 89 | 41 | 41 | 41 | 0.462 |
| 403559 | 86775300 | 75 | 75 | 75 | 105 | 105 | 105 | 51 | 51 | 51 | 3.005 |
