Alpex L Elbow 90°
Useful Information
Technical Specification
- Manufacturer: FRÄNKISCHE
- Material:
- PPSU (Polyphenylsulfone) body
- stainless steel sleeves (≤63mm); mild steel sleeves (75mm)
- Operating Temperature: 95°C
- Pressure Rating: 10 bar
- Pressing Contours: F-contour
- Sizes Available: 40mm to 75mm
- Standards: DVGW W 534
- Certification: WRAS approved
Description

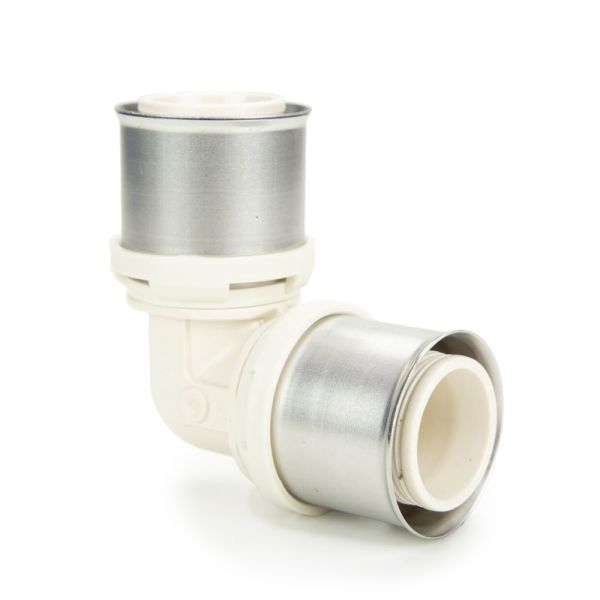

This 90° elbow fitting is designed to create secure angled connections in drinking water and heating system installations. Manufactured from robust PPSU with stainless steel pressing sleeves (mild steel sleeves on 75mm sizes), it features white fixation rings with integrated inspection holes for easy visual verification. The leak-before-press function provides additional installation safety by identifying any unpressed fittings during pressure testing. Compatible with F-contour pressing tools, this WRAS approved, lead-free fitting ensures long-term reliability for both potable water and heating systems.
Key Features & Benefits
- Leak-Before-Press Function: Identifies unpressed fittings during pressure testing (1 – 6.5 bar)
- Lead-Free Construction: Safe for drinking water systems
- Visual Inspection: White fixation rings with integrated inspection holes
- Durable Materials: PPSU body with stainless or mild steel pressing sleeves for robust performance
- Press Compatibility: Suitable for F-contour pressing tools
- Versatile Use: Ideal for both potable water and heating applications
- WRAS Approved: Certified for drinking water installations
| SKU | Supplier Code | D (mm) | L1 (mm) | L2 (mm) | Z1 (mm) | Z2 (mm) | Weight (kg) |
| 403416 | 88440200 | 40 | 66 | 66 | 27 | 27 | 0.134 |
| 403417 | 88450200 | 50 | 80 | 80 | 29 | 29 | 0.205 |
| 403418 | 88463200 | 63 | 91 | 91 | 36 | 36 | 0.290 |
| 403419 | 86775200 | 75 | 105 | 105 | 51 | 51 | 2.128 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
