Alpex L Elbow 45°
Useful Information
Technical Specification
- Manufacturer: FRÄNKISCHE
- Material:
- PPSU (Polyphenylsulfone) body
- stainless steel sleeves (≤63mm); mild steel sleeves (75mm)
- Operating Temperature: 95°C
- Pressure Rating: 10 bar
- Pressing Contours: F-contour
- Sizes Available: 40mm to 75mm
- Standards: DVGW W 534
- Certification: WRAS approved
Description

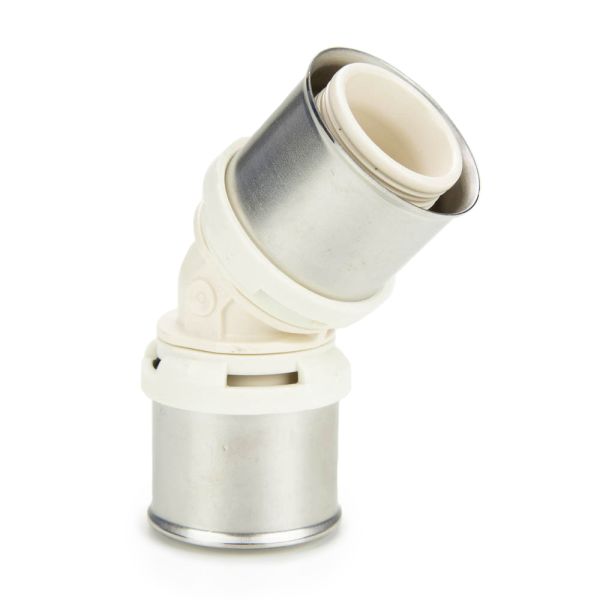

This 45° elbow fitting is designed for angled pipe transitions in drinking water and heating system installations. Made from durable PPSU with stainless steel pressing sleeves (mild steel sleeves on 75mm sizes), it features white fixation rings with integrated inspection holes for visual inspection during installation. The leak-before-press function ensures any unpressed fittings are detected during pressure testing. Compatible with F-contour press tools, this lead-free, WRAS approved fitting is suitable for both potable water and heating applications.
Key Features & Benefits
- Leak-Before-Press Function: Identifies unpressed fittings during pressure testing (1 – 6.5 bar)
- Lead-Free Construction: Certified for drinking water safety
- Visual Inspection: White fixation rings with integrated inspection holes for easy verification
- Durable Build: PPSU body with stainless or mild steel sleeves for robust long-term performance
- Press Compatibility: Compatible with F-contour press tools
- Versatile Use: Suitable for drinking water and heating installations
- WRAS Approved: Certified for potable water systems
| Product Code | Supplier Code | D (mm) | L1 (mm) | L2 (mm) | Z1 (mm) | Z2 (mm) | Weight (kg) |
| 403552 | 88440201 | 40 | 55 | 55 | 15 | 15 | 0.125 |
| 403553 | 88450201 | 50 | 66 | 66 | 17 | 17 | 0.190 |
| 403554 | 88463201 | 63 | 73 | 73 | 19 | 19 | 0.266 |
| 403555 | 86775201 | 75 | 92 | 92 | 39 | 39 | 1.793 |
