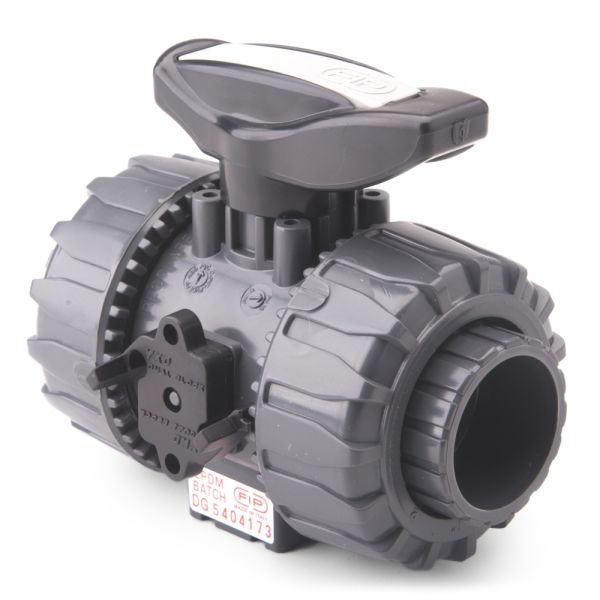

VKD Double Union Ball Valves

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Manufacturer; Durapipe
  • Material: polyvinyl chloride – unplasticised (PVCu)
  • Temperature rating: 0° - 60°C
  • Max. pressure: up to 16 bar
  • Equipped with plain ends.
  • EPDM seals included.
  • Very easy and quick to install.
  • Corrosion resistant.


Product Code d (mm) DN (mm) PN L (mm) Z (mm) H (mm) H1 (mm) E (mm) B (mm) B1 (mm) C (mm) C1 (mm)
354564 1/2 15 16 16 70 103 65 54 54 29 67 40
354565 3/4 20 16 19 77 115 70 65 65 35 85 49
354566 1 25 16 22 83 128 78 73 70 39 85 49
354567 1 1/4 32 16 26 94 146 88 86 83 46 108 64
354568 1 1/2 40 16 30 106 164 91 98 89 52 108 64
354569 2 50 16 36 127 199 111 122 108 62 134 76
354570 3 80 16 168 51 270 149 203 177 105 327 272
354571 4 100 16 186 61 308 167 238 195 129 385 330



Useful Info:

VKD double union ball valve changes in design after 2".

Durapipe's PVCu is lightweight yet strong and durable.

Solvent welding is a fast, cost effective and secure way to safely join PVCu pipe systems.

All Durapipe pipes and fittings are made to operate continuously for 50 years at their maximum rated pressure at a working temperature of 20°C.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
354564DP PVCu VKD DU Ball Valve EPDM Plain 1/2" £86.74 30% £60.72
354565DP PVCu VKD DU Ball Valve EPDM Plain 3/4" £102.21 30% £71.55
354566DP PVCu VKD DU Ball Valve EPDM Plain 1" £123.52 30% £86.46
354567DP PVCu VKD DU Ball Valve EPDM Plain 1 1/4" £157.11 30% £109.98
354568DP PVCu VKD DU Ball Valve EPDM Plain 1 1/2" £203.05 30% £142.14
354569DP PVCu VKD DU Ball Valve EPDM Plain 2" £257.63 30% £180.34
354570DP PVCu VKD DU Ball Valve EPDM Plain 3" £666.07 30% £466.25
354571DP PVCu VKD DU Ball Valve EPDM Plain 4" £915.83 30% £641.08
