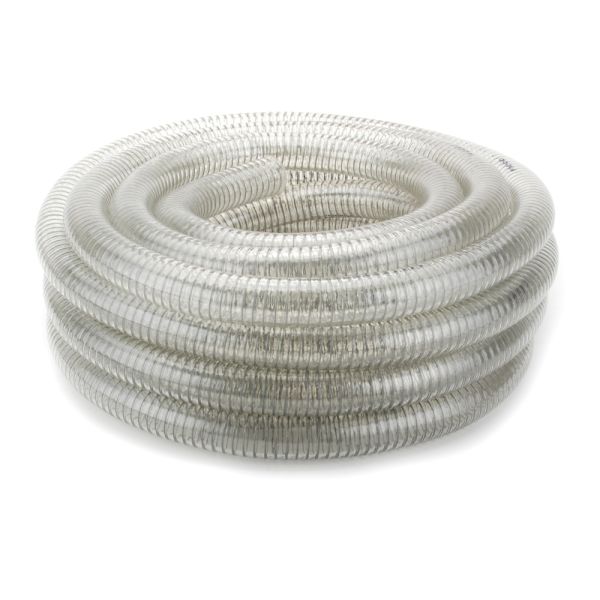

Clear Wire Reinforced Hose
Technical Specification
- Material: Polyvinyl Chloride (PVC) with tensile steel wire helix
- Colour: Clear
- Safety Factor: 3:1 at 20°C
- Operating Temperature Range: -5°C to +65°C
- Cold Bend Temperature: -45°C
- Vacuum Rating: 711mm Hg (94%) at 20°C
- Pressure Rating: Up to 6 bar (varies by size)
- Food Grade: FDA & EU No.10/201 compliant
- Available Sizes: ½" to 4" internal diameter
- Lengths Available: 10m and 30m coils
- Chemical Resistance: Suitable for diluted acids, alkalis, oxidising and reducing agents
Description
Manufactured from flexible clear PVC and reinforced with a high-strength steel wire helix, this hose is engineered for reliable suction and delivery applications across a wide range of industries. Its transparent construction allows easy visual inspection of contents during operation, while the embedded wire reinforcement delivers excellent crush and kink resistance.
Designed to handle water, slurry, sewage, granules, chemicals, and other waste materials, it is also approved for use with foodstuffs under FDA and EU regulations. This makes it highly versatile for both industrial and hygienic applications. Its broad working temperature range and robust construction make it suitable for use in demanding environments.
Key Features & Benefits
- Reinforced with tensile steel helix for added strength and durability
- Fully clear PVC body enables content visibility
- Suitable for suction and discharge operations
- FDA and EU compliant for food contact
- Highly flexible with excellent resistance to crushing
- Handles a broad temperature range from -5°C to +65°C
- Resistant to common chemicals, diluted acids, and alkalis
- Maintains flexibility even in cold conditions down to -45°C
- Available in a wide range of diameters and coil lengths
- Vacuum rated to 94% at 20°C for reliable suction performance
| Dimensions and Pressure Ratings | |||||||
| Product Code | Internal Diameter (inch) | Internal Diameter (mm) | Outer Diameter (mm) | Wall Thickness (mm) | Pressure Rating (bar) | Bend radius (mm) | Length (m) |
| 358266 | ½ | 12 | 18 | 3 | 6 | 50 | 30 |
| 358258 | ¾ | 19 | 26 | 3.4 | 6 | 80 | 10 |
| 358267 | ¾ | 19 | 26 | 3.4 | 6 | 80 | 30 |
| 358259 | 1 | 25 | 32 | 3.5 | 6 | 100 | 10 |
| 358268 | 1 | 25 | 32 | 3.5 | 6 | 100 | 30 |
| 358260 | 1¼ | 32 | 40 | 3.5 | 5 | 130 | 10 |
| 358269 | 1¼ | 32 | 40 | 3.5 | 5 | 130 | 30 |
| 358261 | 1½ | 38 | 47 | 4 | 5 | 155 | 10 |
| 358270 | 1½ | 38 | 47 | 4 | 5 | 155 | 30 |
| 358262 | 2 | 50 | 61 | 4.5 | 5 | 200 | 10 |
| 358271 | 2 | 50 | 61 | 4.5 | 5 | 200 | 30 |
| 358263 | 2½ | 64 | 78 | 5.5 | 4 | 260 | 10 |
| 358272 | 2½ | 64 | 78 | 5.5 | 4 | 260 | 30 |
| 358264 | 3 | 76 | 90 | 7.5 | 4 | 320 | 10 |
| 358273 | 3 | 76 | 90 | 7.5 | 4 | 320 | 30 |
| 358265 | 4 | 102 | 116 | 8 | 4 | 430 | 10 |
| 358274 | 4 | 102 | 116 | 8 | 4 | 430 | 30 |
