F BSPP
Key Features / Tech Specs:
- Material: Brass
- Operating pressure: 20 bar
- High-tensile braided polyester reinforced rubber alloy hose
- Available in 5 to 20-metre coils
- Female BSPP thread
Technical Info:
| Dimensions and Pressure Ratings | ||||
| Product Code | Internal Diameter (inch) | Thread Size (inch) | Pressure Rating (bar) | Length (m) |
| 378833 | 1/4 | 1/4 | 20 | 5 |
| 378834 | 1/4 | 1/4 | 20 | 10 |
| 378835 | 1/4 | 1/4 | 20 | 15 |
| 378836 | 1/4 | 1/4 | 20 | 20 |
| 378837 | 5/16 | 1/4 | 20 | 5 |
| 378838 | 5/16 | 1/4 | 20 | 10 |
| 378839 | 5/16 | 1/4 | 20 | 15 |
| 378840 | 5/16 | 1/4 | 20 | 20 |
| 378841 | 3/8 | 3/8 | 20 | 5 |
| 378842 | 3/8 | 3/8 | 20 | 10 |
| 378843 | 3/8 | 3/8 | 20 | 15 |
| 378844 | 3/8 | 3/8 | 20 | 20 |
| 378845 | 1/2 | 1/2 | 20 | 5 |
| 378846 | 1/2 | 1/2 | 20 | 10 |
| 378847 | 1/2 | 1/2 | 20 | 15 |
| 378848 | 1/2 | 1/2 | 20 | 20 |
Â
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
Useful Info:

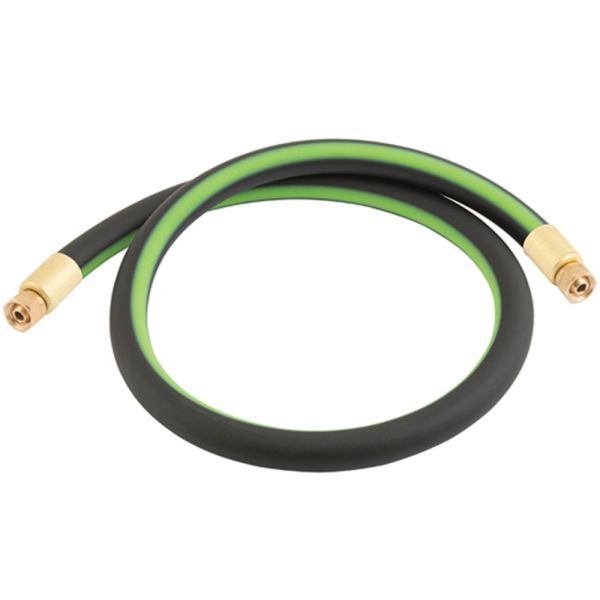

Our hose assemblies are fitted with brass ferrules that are mechanically swaged for a leak-free connection. They come complete with female nuts and 60° coned tails, manufactured from brass, at each end.
The hose has excellent durability due to the high-tensile polyester reinforcement and oil resistant black lining. It has an operating pressure of up to 18 bar and can withstand temperatures as low as -20°C and as high as 60°C.
This hose also has a safety factor of 3:1 with excellent ozone and abrasion resistance allowing for outdoor use. It has a smooth bore for optimal airflow, is strong and highly flexible resisting to permanent kinks whilst still having an excellent bend radius.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
