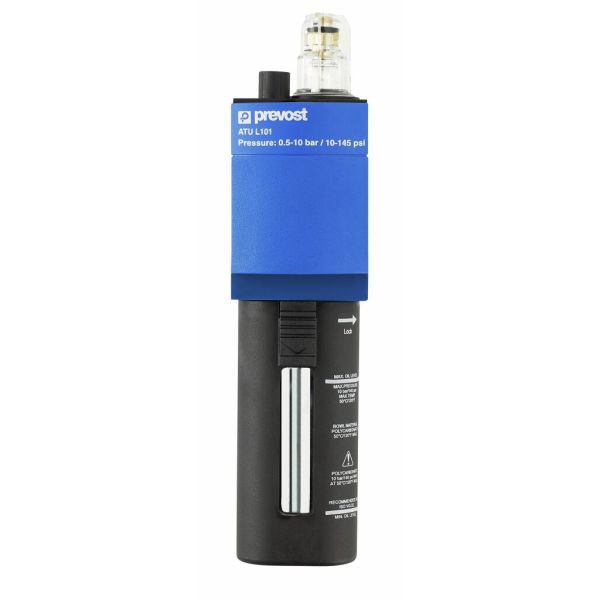

Prevost Lubricator

• Thread Sizes: G 1/8, G 1/4, G 3/8, G 1/2 (BSPP female thread)
• Maximum Service Pressure: 10 bar
• Operating Temperature Range: +5°C to 50°C
• Oil Capacity:

            G 1/8 & G 1/4: 30 ml

            G 3/8 & G 1/2: 65 ml

• Weight:
• G 1/8 & G 1/4: 0.19 kg
• G 3/8 & G 1/2: 0.60 kg

These lubricators are designed for optimal pneumatic system performance, ensuring efficient lubrication of air-powered tools and equipment. By injecting a precise amount of oil into the compressed air stream, they reduce friction, prevent wear, and enhance the longevity of pneumatic components. Suitable for various industrial applications, they support BSPP female thread connections and maintain consistent operation within the specified pressure range.

• Optimised Lubrication – Fine oil mist injection improves the performance and lifespan of pneumatic tools.
• BSPP Female Threaded Connection – Secure and leak-proof integration into compressed air systems.
• Precise Oil Control – Adjustable dosing with a needle screw for accurate lubrication.
• Continuous Operation – Allows refilling under pressure to avoid downtime.
• Durable Construction – Designed to withstand industrial environments with a robust build.
• Wide flow rate range – Models available with flow rates from 600 l/min to 4,000 l/min.
• Temperature Resilience – Operates efficiently between +5°C to 50°C.
• Compact and Lightweight – Easy to install without adding excessive weight to the system.

These lubricators are essential for maintaining a reliable and efficient pneumatic network, reducing wear and tear, and ensuring smooth operation across various industrial applications.

A lubricator adds a small amount of oil into the compressed air to keep tools and equipment running smoothly.

• Air flows in – Compressed air enters the lubricator.
• Oil is added – The air passes through a chamber where tiny drops of oil are mixed in.
• Oiled air flows out – This lightly oiled air then moves through the system to lubricate moving parts inside tools.

A lubricator is important because it automatically adds the right amount of oil into the air to keep tools running smoothly. It helps reduce friction, prevent rust, and extend the life of equipment. Unlike manual oiling, a lubricator works continuously while the system is running - saving time, reducing maintenance, and ensuring tools are always properly lubricated.
