GF ABS 3-Way Ball Valve L Port EPDM
Technical Specification
- Valve type: 3-way ball valve - L-port configuration
- Body material: Acrylonitrile butadiene styrene (ABS)
- Ball seat material: PTFE
- Seal material: EPDM
- Operating pressure: Up to 10 bar
- Temperature range: -40°C to +60°C
- Standards: ASTM D3965 cell classification 42222
- Connection: Union ends
- Lever: Lockable as standard, adjustable in 45° increments
- Mounting: Integrated stainless steel mounting inserts
- Operation angle: 360°

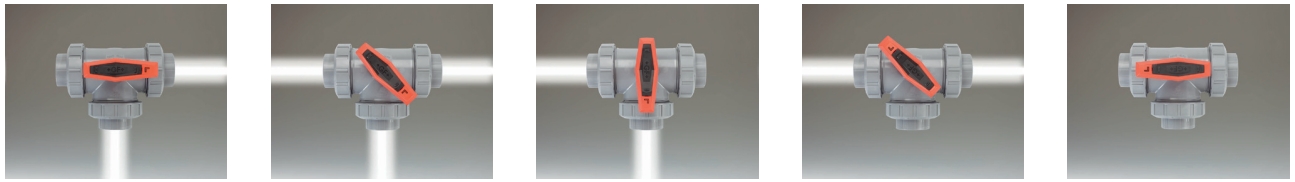

Diverting function in the base position
Mixing function with
decreased flow
Diverting function
Outlet closed, passage
open with decreased flow
Shutting off function
Description
The Georg Fischer ABS 3-Way Ball Valve L Port is a high-performance valve designed for precise diverting and mixing duties within demanding industrial systems. Manufactured from robust ABS and fitted with EPDM seals, this valve delivers excellent chemical resistance, durability and long service life.
Configured with an L-port ball, the valve allows controlled directional flow between two outlets, making it ideal for applications requiring selective diversion rather than full mixing. Its fully unionised design ensures straightforward installation and rapid removal for maintenance, while compatibility with other Georg Fischer systems provides added flexibility during system upgrades or replacements.
With a lockable lever supplied as standard and integrated stainless steel mounting inserts, the valve is suitable for both manual operation and future automation using electric or pneumatic actuators.
Key Features & Benefits
- L-port ball design: Ideal for diverting flow between outlets in 3-way systems
- Lockable lever as standard: Prevents unauthorised or accidental operation, adjustable every 90°
- Excellent flow performance: PTFE ball seats provide smooth operation and low pressure loss
- Fully unionised construction: Allows easy removal of the valve body without disturbing pipework
- Automation ready: Compatible with electric or pneumatic actuators and position feedback sensors
- Durable ABS body: Lightweight, corrosion-resistant and suitable for aggressive media
- Wide application range: Suitable for chemical processing, water treatment, marine and industrial use
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
