Single-Jet Cold Water

Single-Jet Cold Water

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

WRAS Approved Product - sold by PipestockKey Features / Tech Specs:

  • For cold water use only
  • Materials: brass (body), EPDM (O-rings)
  • Accuracy Class A for vertical installation
  • Accuracy Class B for horizontal installation
  • 3 red digits for litres and 5 black digits for cubic metres
  • Working pressure up to 16 bar
  • Working temperatures: 5°C to 30°C
  • Fittings supplied: nuts, tails, washers
  • Not resistant to ice
  • Drinking Water - EEC class B/A approved to Directive 75/33/EEC
  • WRAS approved - Listing Number: 1102062
  • MID approved: Specifications according to OIML R49, EN14154 or ISO4064

Useful Info:

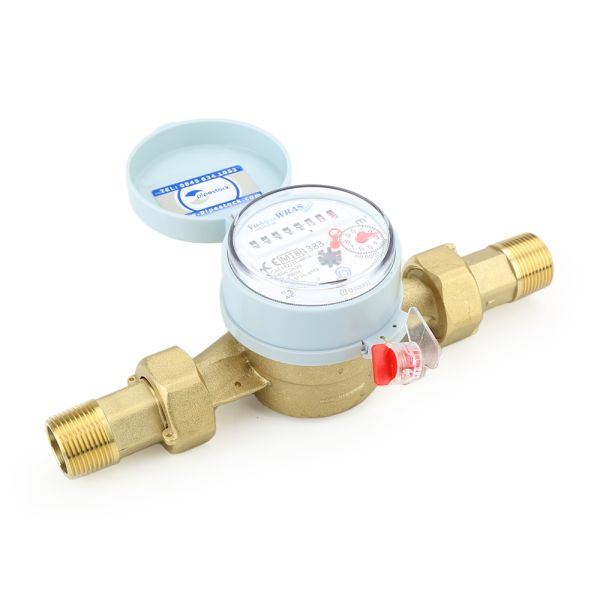

These are the ALFA-SJ-SDC model range of compact single-jet impellar-designed water meters. They are equipped with a dry, vacuum filled dial, which includes direct reading on 8 x 360° rotating rollers.

The security features on these meters include an anti-fraud shielding system and magnetic transmission.

Helpful markings, including AHS and technical information on the meter face.

These water meters are an excellent, low-cost option for secondary or sub-water metering in domestic or commercial applications.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
Water Meter SJ to 30C Flow 2.5 m3/hr Male BSP 1/2"
Code
357412
Product Name
Water Meter SJ to 30C Flow 2.5 m3/hr Male BSP 1/2"
List Price
£51.08
You Pay
£25.54
You Save
50%
Qty
Water Meter SJ to 30C Flow 4 m3/hr Male BSP 3/4"
Code
357413
Product Name
Water Meter SJ to 30C Flow 4 m3/hr Male BSP 3/4"
List Price
£66.42
You Pay
£33.21
You Save
50%
Qty
Pulse Kit For Single Jet Meter 30C 1 Pulse = 10 Litres
Code
357295
Product Name
Pulse Kit For Single Jet Meter 30C 1 Pulse = 10 Litres
List Price
£47.52
You Pay
£23.76
You Save
50%
Qty
3 products
