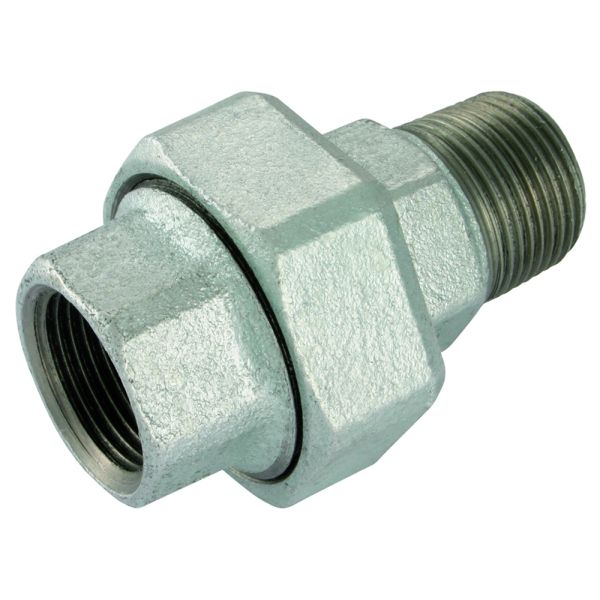

Union Male x Female

Union Male x Female

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (galvanised)
  • Male BSPT thread x female BSPP thread
  • ISO/EN U12
  • Sizes available: ¼" to 3"

Malleable Iron Union MxF

Product Code Diameter (inch) b (mm) z2 (mm) s1 (mm) s2 (mm) s3 (mm)
362889 ¼ 55 45 19 28 15
362890 59 49 22 32 20
362891 ½ 66 53 26 41 23
362892 ¾ 72 57 31 48 30
362893 1 80 63 38 55 36
362894 1 ¼ 90 71 48 67 48
362895 1 ½ 96 77 54 74 54
362896 2 106 82 66 90 66
362897 2 ½ 122 95 85 111 85
362898 3 134 104 96 130 95



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
MLB IRN GF Union M x F Galv. 1/4"
Code
362889
Product Name
MLB IRN GF Union M x F Galv. 1/4"
List Price
£25.35
You Pay
£17.75
You Save
30%
Qty
MLB IRN GF Union M x F Galv. 3/8"
Code
362890
Product Name
MLB IRN GF Union M x F Galv. 3/8"
List Price
£21.75
You Pay
£15.23
You Save
30%
Qty
MLB IRN GF Union M x F Galv. 1/2"
Code
362891
Product Name
MLB IRN GF Union M x F Galv. 1/2"
List Price
£19.80
You Pay
£13.86
You Save
30%
Qty
MLB IRN GF Union M x F Galv. 3/4"
Code
362892
Product Name
MLB IRN GF Union M x F Galv. 3/4"
List Price
£24.20
You Pay
£16.94
You Save
30%
Qty
MLB IRN GF Union M x F Galv. 1"
Code
362893
Product Name
MLB IRN GF Union M x F Galv. 1"
List Price
£28.20
You Pay
£19.74
You Save
30%
Qty
MLB IRN GF Union M x F Galv. 1 1/4"
Code
362894
Product Name
MLB IRN GF Union M x F Galv. 1 1/4"
List Price
£49.65
You Pay
£34.76
You Save
30%
Qty
MLB IRN GF Union M x F Galv. 1 1/2"
Code
362895
Product Name
MLB IRN GF Union M x F Galv. 1 1/2"
List Price
£63.65
You Pay
£44.56
You Save
30%
Qty
MLB IRN GF Union M x F Galv. 2"
Code
362896
Product Name
MLB IRN GF Union M x F Galv. 2"
List Price
£100.10
You Pay
£70.07
You Save
30%
Qty
MLB IRN GF Union M x F Galv. 2 1/2"
Code
362897
Product Name
MLB IRN GF Union M x F Galv. 2 1/2"
List Price
£224.05
You Pay
£156.84
You Save
30%
Qty
MLB IRN GF Union M x F Galv. 3"
Code
362898
Product Name
MLB IRN GF Union M x F Galv. 3"
List Price
£308.00
You Pay
£215.60
You Save
30%
Qty
10 products
