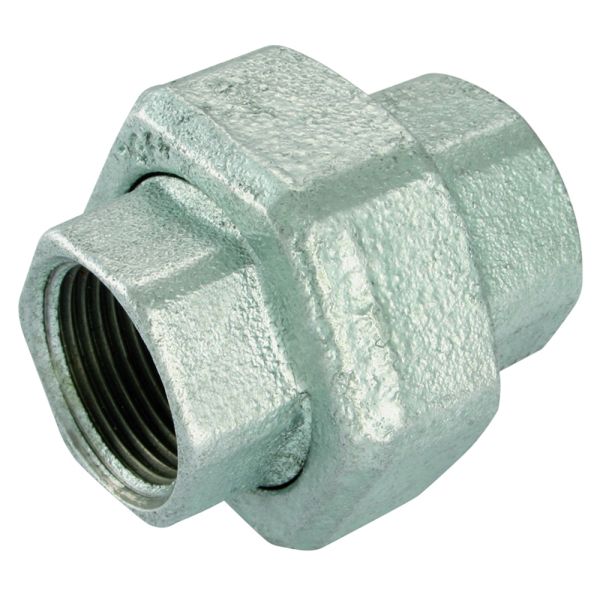

Union F Taper Seat

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (galvanised)
  • Female BSPP thread
  • ISO/EN U11
  • Sizes available: ¼" to 4"

Malleable Iron Flat Seat Union

Product Code Diameter (inch) a (mm) z1 (mm) s1 (mm) s2 (mm) s3 (mm)
362868 ¼ 42 22 19 28 10
362869 48 28 22 32 12
362870 ½ 48 22 26 41 25
362871 ¾ 52 22 31 48 32
362872 1 58 24 38 55 38
362873 1 ¼ 65 27 48 67 48
362874 1 ½ 70 32 54 74 54
362875 2 78 30 66 90 66
362876 2 ½ 90 36 85 111 85
362877 3 101 41 96 130 96
362878 4 114 42 120 151 120



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
362868MLB IRN GF Union Female Taper Seat Galv. 1/4" £26.90 30% £18.83
362869MLB IRN GF Union Female Taper Seat Galv. 3/8" £23.95 30% £16.77
362870MLB IRN GF Union Female Taper Seat Galv. 1/2" £20.50 30% £14.35
362871MLB IRN GF Union Female Taper Seat Galv. 3/4" £22.35 30% £15.65
362872MLB IRN GF Union Female Taper Seat Galv. 1" £26.30 30% £18.41
362873MLB IRN GF Union Female Taper Seat Galv. 1 1/4" £45.35 30% £31.75
362874MLB IRN GF Union Female Taper Seat Galv. 1 1/2" £51.25 30% £35.88
362875MLB IRN GF Union Female Taper Seat Galv. 2" £76.30 30% £53.41
362876MLB IRN GF Union Female Taper Seat Galv. 2 1/2" £195.50 30% £136.85
362877MLB IRN GF Union Female Taper Seat Galv. 3" £258.50 30% £180.95
362878MLB IRN GF Union Female Taper Seat Galv. 4" £492.15 30% £344.51
