Key Features / Tech Specs & Dimensions:

Material: malleable iron (galvanised)
Female BSPP thread
Sizes available: ⅛" - 4"

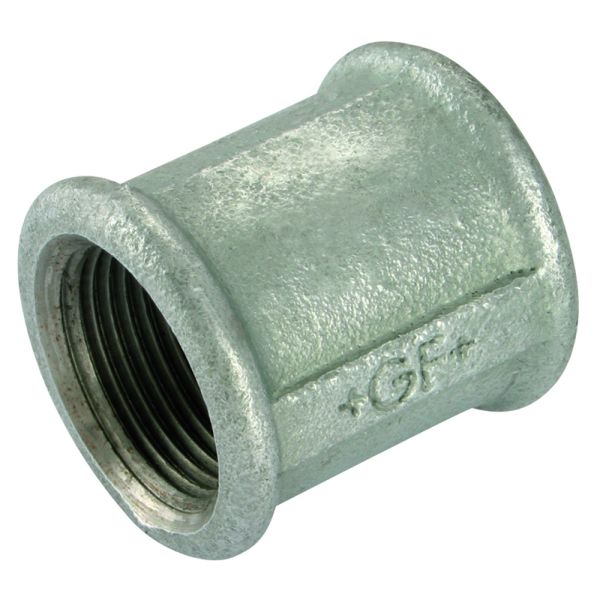

Malleable Iron Socket

Product Code	Diameter (inch)	a (mm)	z1 (mm)
362692*	⅛	25	11
362693*	¼	27	7
362694	⅜	30	10
362695	½	36	10
362696	¾	39	9
362697	1	45	11
362698	1¼	50	12
362699	1½	55	17
362700	2	65	17
362701	2½	74	20
362702	3	80	20
362703	4	94	22

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

* Fitting made with electroplated galvanised steel and not suitable for use with potable water.

Useful Info:

These sockets are used for the connection of two pieces of male threaded pipe.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
362692	MLB IRN GF Socket Galv. 1/8"	£14.20	50%	£7.10
362693	MLB IRN GF Socket Galv. 1/4"	£12.32	50%	£6.16
362694	MLB IRN GF Socket Galv. 3/8"	£12.32	50%	£6.16
362695	MLB IRN GF Socket Galv. 1/2"	£11.48	50%	£5.74
362696	MLB IRN GF Socket Galv. 3/4"	£15.08	50%	£7.54
362697	MLB IRN GF Socket Galv. 1"	£19.32	50%	£9.66
362698	MLB IRN GF Socket Galv. 1 1/4"	£40.32	50%	£20.16
362699	MLB IRN GF Socket Galv. 1 1/2"	£54.44	50%	£27.22
362700	MLB IRN GF Socket Galv. 2"	£78.08	50%	£39.04
362701	MLB IRN GF Socket Galv. 2 1/2"	£159.36	50%	£79.68
362702	MLB IRN GF Socket Galv. 3"	£157.44	50%	£78.72
362703	MLB IRN GF Socket Galv. 4"	£372.64	50%	£186.32
