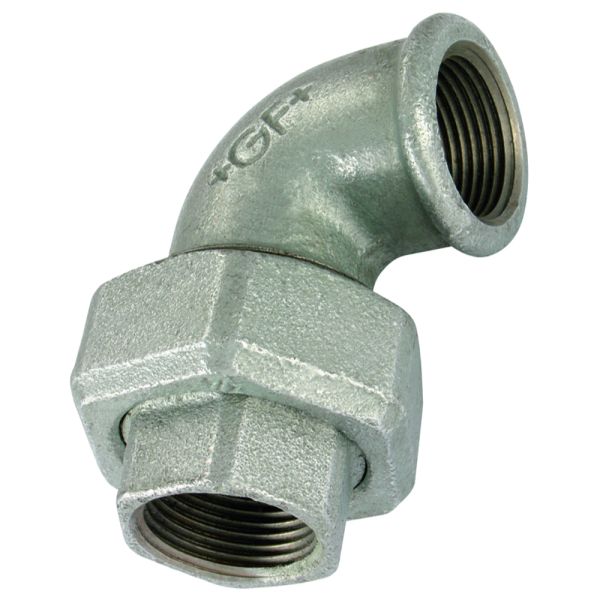

Union Elbow 90 F Thread

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (galvanised)
  • Female BSPP threads

Malleable Iron Union Elbow 90 Female

Product Code Diameter (inch) Nut (inch) a (mm) c (mm) z1 (mm) z2 (mm) s1 (mm) s2 (mm) Pressure Rating (bar)
362179 ½ 1 58 28 15 45 25 41 25
362180 ¾ 62 33 18 47 32 48 25
362181 1 72 38 21 55 38 55 25
362182 2 82 45 26 63 48 67 25
362183 90 50 31 71 54 74 25
362184 2 100 58 34 76 66 90 25



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
362179MLB IRN GF Union Elbow 90 Female Galv. 1/2" £31.90 30% £22.33
362180MLB IRN GF Union Elbow 90 Female Galv. 3/4" £37.20 30% £26.04
362181MLB IRN GF Union Elbow 90 Female Galv. 1" £51.20 30% £35.84
362182MLB IRN GF Union Elbow 90 Female Galv. 1 1/4" £90.75 30% £63.53
362183MLB IRN GF Union Elbow 90 Female Galv. 1 1/2" £102.90 30% £72.03
362184MLB IRN GF Union Elbow 90 Female Galv. 2" £178.05 30% £124.64
