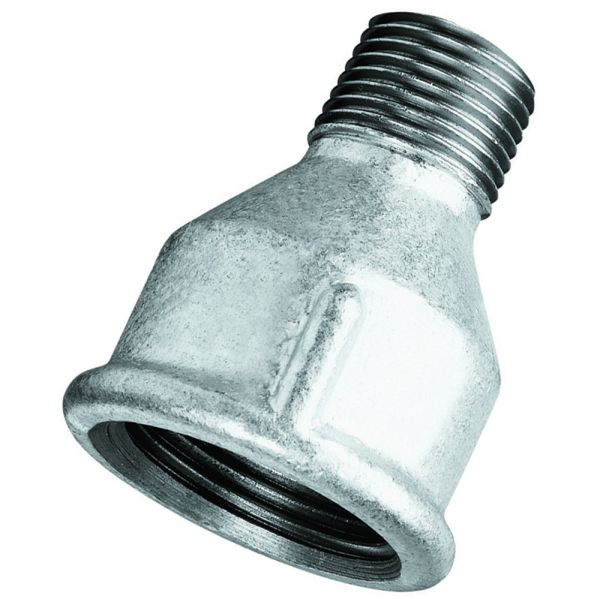

Reducing Socket M x F
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: malleable iron/steel (galvanised)
- Male BSPT thread
- Female BSPP thread
| Product Code | Dimension 1 (inch) | Dimension 2 (inch) | a (mm) | z (mm) |
| 362650 | ¾ | ½ | 48 | 33 |
| 362651 | 1 | ¾ | 55 | 38 |
| 362652 | 1¼ | 1 | 60 | 41 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
Useful Info:
These reducing sockets are used for the connection of two pieces of threaded pipe of different dimensions with the larger pipe being male threaded and the smaller pipe female threaded.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
