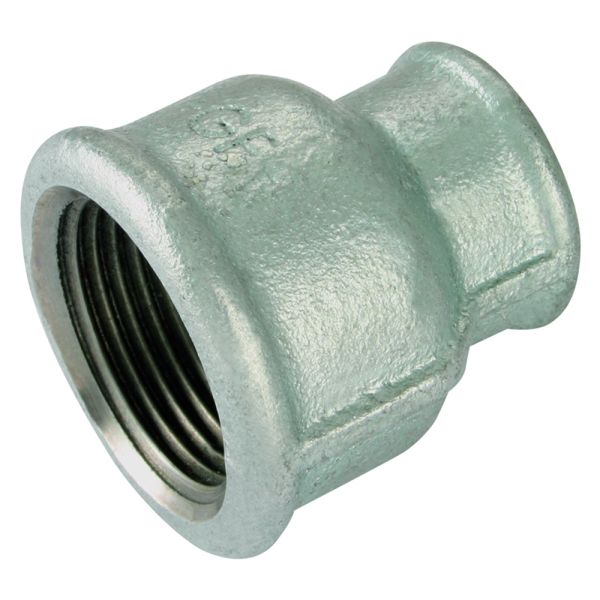

Reducing Socket F Thread

Skip to the beginning of the images gallery

Useful Information

Key Features / Tech Specs & Dimensions:

Material: malleable iron (galvanised)
Female BSPP threads

Malleable Iron Cross Female

Product Code	Diameter 1 (inch)	Diameter 2 (inch)	a (mm)	z2 (mm)	Pressure Rating (bar)
362511	¼	⅛	27	10	25
362512	⅜	¼	30	10	25
362513	½	¼	36	13	25
362514	½	⅜	36	13	25
362515	¾	⅜	39	14	25
362516	¾	½	39	11	25
362517	1	½	45	15	25
362518	1	¾	45	13	25
362519	1¼	½	50	18	25
362520	1¼	¾	50	16	25
362521	1¼	1	50	14	25
362522	1½	½	55	23	25
362523	1½	¾	55	21	25
362524	1½	1	55	19	25
362525	1½	1¼	55	17	25
362526	2	¾	65	26	25
362527	2	1	65	24	25
362528	2	1¼	65	22	25
362529	2	1½	65	22	25
362530	2½	1½	74	28	25
362531	2½	2	74	23	25
362532	3	1½	80	31	25
362533	3	2	80	26	25
362534	3	2½	80	23	25
362535	4	2	94	34	25
362536	4	2½	94	31	25
362537	4	3	94	28	25

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
362511	MLB IRN GF Reducing Socket Galv. 1/4" x 1/8"	£18.56	50%	£9.28
362512	MLB IRN GF Reducing Socket Galv. 3/8" x 1/4"	£21.12	50%	£10.56
362513	MLB IRN GF Reducing Socket Galv. 1/2" x 1/4"	£21.24	50%	£10.62
362514	MLB IRN GF Reducing Socket Galv. 1/2" x 3/8"	£12.04	50%	£6.02
362515	MLB IRN GF Reducing Socket Galv. 3/4" x 3/8"	£10.08	50%	£5.04
362516	MLB IRN GF Reducing Socket Galv. 3/4" x 1/2"	£18.68	50%	£9.34
362517	MLB IRN GF Reducing Socket Galv. 1" x 1/2"	£24.12	50%	£12.06
362518	MLB IRN GF Reducing Socket Galv. 1" x 3/4"	£23.00	50%	£11.50
362519	MLB IRN GF Reducing Socket Galv. 1 1/4" x 1/2"	£46.72	50%	£23.36
362520	MLB IRN GF Reducing Socket Galv. 1 1/4" x 3/4"	£51.68	50%	£25.84
362521	MLB IRN GF Reducing Socket Galv. 1 1/4" x 1"	£41.28	50%	£20.64
362522	MLB IRN GF Reducing Socket Galv. 1 1/2" x 1/2"	£88.08	50%	£44.04
362523	MLB IRN GF Reducing Socket Galv. 1 1/2" x 3/4"	£79.16	50%	£39.58
362524	MLB IRN GF Reducing Socket Galv. 1 1/2" x 1"	£59.40	50%	£29.70
362525	MLB IRN GF Reducing Socket Galv. 1 1/2" x 1 1/4"	£66.00	50%	£33.00
362526	MLB IRN GF Reducing Socket Galv. 2" x 3/4"	£126.36	50%	£63.18
362527	MLB IRN GF Reducing Socket Galv. 2" x 1"	£113.32	50%	£56.66
362528	MLB IRN GF Reducing Socket Galv. 2" x 1 1/4"	£105.72	50%	£52.86
362529	MLB IRN GF Reducing Socket Galv. 2" x 1 1/2"	£84.68	50%	£42.34
362530	MLB IRN GF Reducing Socket Galv. 2 1/2" x 1 1/2"	£188.72	50%	£94.36
362531	MLB IRN GF Reducing Socket Galv. 2 1/2" x 2"	£179.80	50%	£89.90
362532	MLB IRN GF Reducing Socket Galv. 3" x 1 1/2"	£262.04	50%	£131.02
362533	MLB IRN GF Reducing Socket Galv. 3" x 2"	£226.20	50%	£113.10
362534	MLB IRN GF Reducing Socket Galv. 3" x 2 1/2"	£230.24	50%	£115.12
362535	MLB IRN GF Reducing Socket Galv. 4" x 2"	£447.16	50%	£223.58
362536	MLB IRN GF Reducing Socket Galv. 4" x 2 1/2"	£216.24	50%	£108.12
362537	MLB IRN GF Reducing Socket Galv. 4" x 3"	£291.84	50%	£145.92
