Reducing Nipple M Thread

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron/steel (galvanised)
  • Male BSPT thread

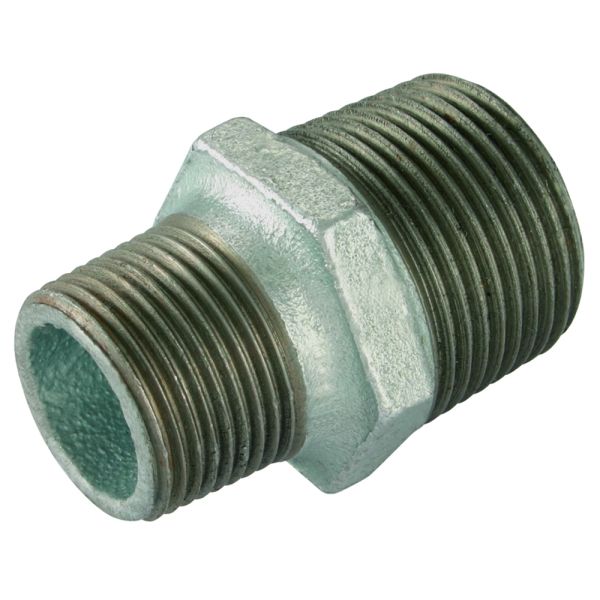

Malleable Iron Reducing Nipple

Product Code Dimension 1 (inch) Dimension 2 (inch) a (mm) s (mm)
362634* ¼ 35 17
362635* ¼ 38 19
362636 ½ ¼ 44 27
362637 ½ 44 22
362638 ¾ 47 30
362639 ¾ ½ 47 31
362640 1 ½ 53 36
362641 1 ¾ 53 36
362642 ¾ 57 46
362643 1 57 46
362644 1 59 50
362645 59 50
362646 2 1 68 65
362647 2 68 65
362648 2 68 65
362649 3 2 83 95



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

* Fitting made with electroplated galvanised steel and not suitable for use with potable water.

Useful Info:

These reducing nipples are used for the connection of two pieces of female threaded pipe of different dimensions.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
362634MLB IRN GF Reducing Nipple Galv. 1/4" x 1/8" £7.70 30% £5.39
362635MLB IRN GF Reducing Nipple Galv. 3/8" x 1/4" £7.70 30% £5.39
362636MLB IRN GF Reducing Nipple Galv. 1/2" x 1/4" £10.60 30% £7.42
362637MLB IRN GF Reducing Nipple Galv. 1/2" x 3/8" £9.45 30% £6.62
362638MLB IRN GF Reducing Nipple Galv. 3/4" x 3/8" £15.65 30% £10.96
362639MLB IRN GF Reducing Nipple Galv. 3/4" x 1/2" £8.10 30% £5.67
362640MLB IRN GF Reducing Nipple Galv. 1" x 1/2" £14.95 30% £10.47
362641MLB IRN GF Reducing Nipple Galv. 1" x 3/4" £8.70 30% £6.09
362642MLB IRN GF Reducing Nipple Galv. 1 1/4" x 3/4" £23.80 30% £16.66
362643MLB IRN GF Reducing Nipple Galv. 1 1/4" x 1" £16.10 30% £11.27
362644MLB IRN GF Reducing Nipple Galv. 1 1/2" x 1" £38.10 30% £26.67
362645MLB IRN GF Reducing Nipple Galv. 1 1/2" x 1 1/4" £21.35 30% £14.95
362646MLB IRN GF Reducing Nipple Galv. 2" x 1" £35.75 30% £25.03
362647MLB IRN GF Reducing Nipple Galv. 2" x 1 1/4" £44.80 30% £31.36
362648MLB IRN GF Reducing Nipple Galv. 2" x 1 1/2" £40.70 30% £28.49
362649MLB IRN GF Reducing Nipple Galv. 3" x 2" £72.25 30% £50.58
