Elbow 90 M Thread

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (galvanised)
  • Male BSPT threads

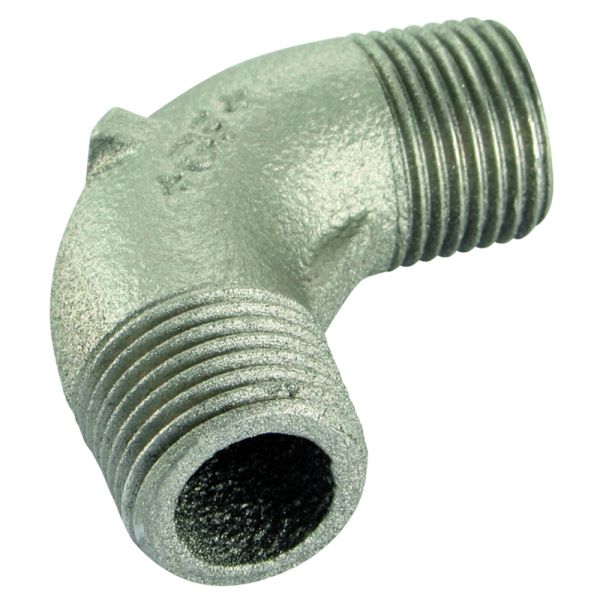

Malleable Iron Elbow 90 Male

Product Code Diameter (inch) b (mm) Pressure Rating (bar)
362169 ¾ 40 25
362170 1 47 25


IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

These elbows are used for the connection of equally sized female malleable iron pipe or fittings at an angle of 90°. They are shorter than bends so are used where space is limited.


If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
362169MLB IRN GF Elbow 90 Male Galv. 3/4" £18.15 30% £12.71
362170MLB IRN GF Elbow 90 Male Galv. 1" £28.45 30% £19.92
