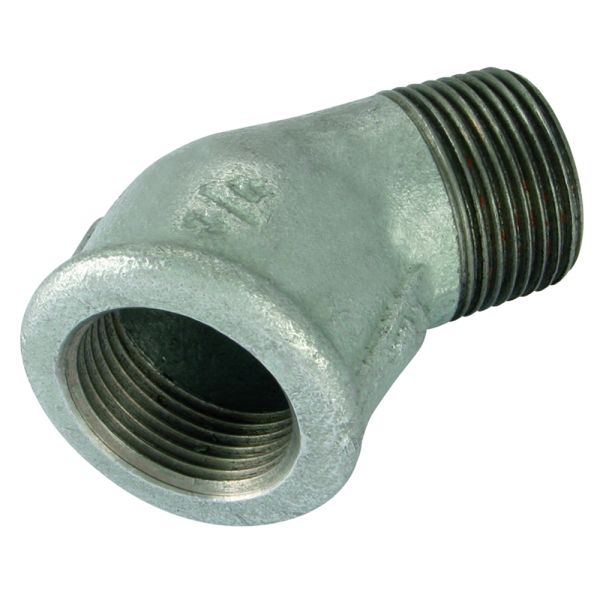

Elbow 45 M x F
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: malleable iron (galvanised)
- Male BSPT x female BSPP threads
| Product Code | Diameter (inch) | a (mm) | b (mm) | z (mm) | Pressure Rating (bar) |
| 362222 | ⅜ | 20 | 25 | 10 | 25 |
| 362223 | ½ | 22 | 28 | 9 | 25 |
| 362224 | ¾ | 25 | 32 | 10 | 25 |
| 362225 | 1 | 28 | 37 | 11 | 25 |
| 362226 | 1¼ | 33 | 43 | 14 | 25 |
| 362227 | 1½ | 36 | 46 | 17 | 25 |
| 362228 | 2 | 43 | 55 | 19 | 25 |
| 362229 | 2½ | 46 | 54 | 19 | 25 |
| 362230 | 3 | 52 | 61 | 22 | 25 |
