Cross F Thread

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (galvanised)
  • Female BSPP threads

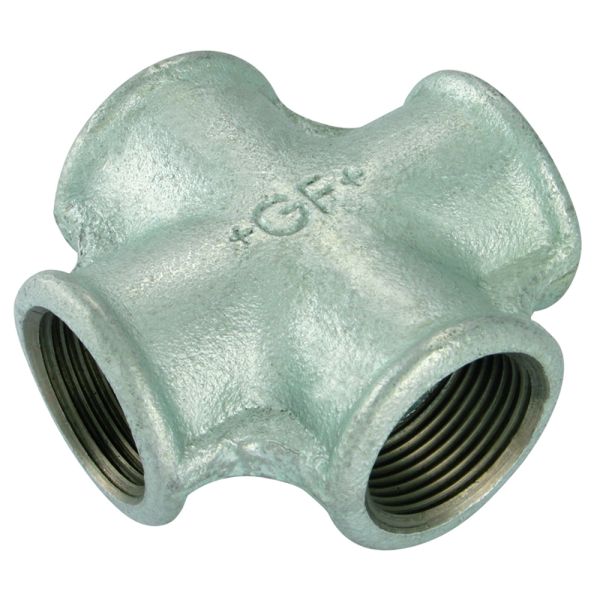

Malleable Iron Cross Female

Product Code Diameter (inch) a (mm) z (mm) Pressure Rating (bar)
362475 ½ 28 15 25
362476 ¾ 33 18 25
362477 1 38 21 25
362478 45 26 25
362479 50 31 25
362480 2 102 78 25
362481 69 42 25
362482 3 78 48 25
362483 4 96 60 25



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
362475MLB IRN GF Cross Female Galv. 1/2" £18.10 30% £12.67
362476MLB IRN GF Cross Female Galv. 3/4" £28.30 30% £19.81
362477MLB IRN GF Cross Female Galv. 1" £35.95 30% £25.17
362478MLB IRN GF Cross Female Galv. 1 1/4" £53.50 30% £37.45
362479MLB IRN GF Cross Female Galv. 1 1/2" £71.90 30% £50.33
362480MLB IRN GF Cross Female Galv. 2" £111.65 30% £78.16
362481MLB IRN GF Cross Female Galv. 2 1/2" £159.40 30% £111.58
362482MLB IRN GF Cross Female Galv. 3" £211.95 30% £148.37
362483MLB IRN GF Cross Female Galv. 4" £437.40 30% £306.18
