Bend 90 M x F

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (galvanised)
  • Male BSPT x female BSPP threads

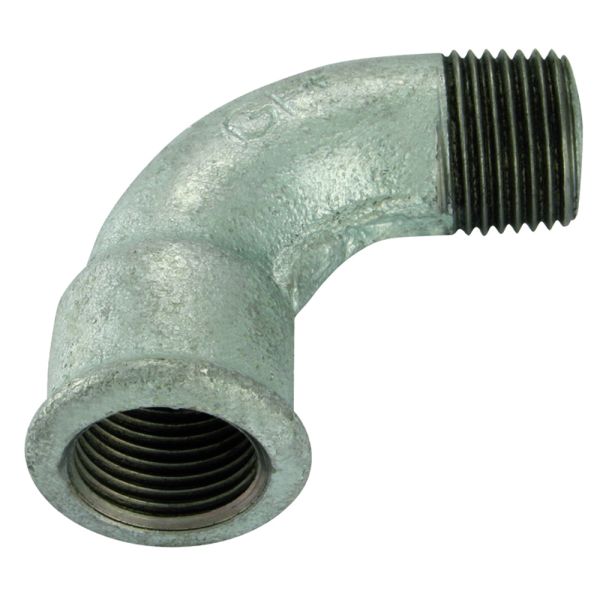

Malleable Iron Bend 90 Male x Female

Product Code Diameter (inch) a (mm) b (mm) z (mm) Pressure Rating (bar)
362012 ¼ 30 30 20 25
362013 36 36 26 25
362014 ½ 45 45 32 25
362015 ¾ 50 50 35 25
362016 1 63 63 46 25
362017 76 76 57 25
362018 85 85 66 25
362019 2 102 102 78 25
362020 115 115 88 25
362021 3 127 127 97 25
362022 4 165 165 129 25



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

These bends are used for the connection of equally sized male and female malleable iron pipe or fittings at an angle of 90°.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
362012MLB IRN GF Bend 90 Short M x F Galv. 1/4" £10.70 30% £7.49
362013MLB IRN GF Bend 90 Short M x F Galv. 3/8" £12.85 30% £9.00
362014MLB IRN GF Bend 90 Short M x F Galv. 1/2" £9.05 30% £6.34
362015MLB IRN GF Bend 90 Short M x F Galv. 3/4" £14.95 30% £10.47
362016MLB IRN GF Bend 90 Short M x F Galv. 1" £20.85 30% £14.60
362017MLB IRN GF Bend 90 Short M x F Galv. 1 1/4" £35.35 30% £24.75
362018MLB IRN GF Bend 90 Short M x F Galv. 1 1/2" £51.75 30% £36.23
362019MLB IRN GF Bend 90 Short M x F Galv. 2" £97.25 30% £68.08
362020MLB IRN GF Bend 90 Short M x F Galv. 2 1/2" £148.90 30% £104.23
362021MLB IRN GF Bend 90 Short M x F Galv. 3" £229.25 30% £160.48
362022MLB IRN GF Bend 90 Short M x F Galv. 4" £567.70 30% £397.39
