Bend 90 F Thread

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (galvanised)
  • Female BSPP threads

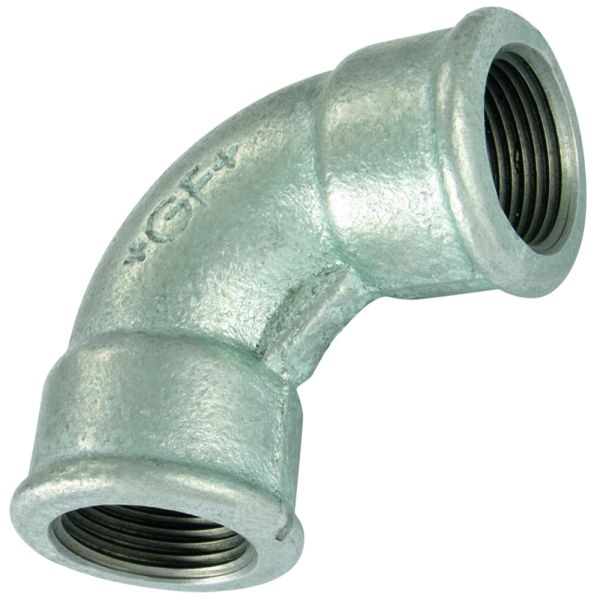

Malleable Iron Bend 90 Female

Product Code Diameter (inch) a (mm) z (mm) Pressure Rating (bar)
362056 ¼ 30 20 25
362057 36 26 25
362058 ½ 45 32 25
362059 ¾ 50 35 25
362060 1 63 46 25
362061 76 57 25
362062 85 66 25
362063 2 102 78 25
362064 115 88 25
362065 3 127 97 25
362066 4 165 129 25



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

These bends are used for the connection of equally sized male malleable iron pipe or fittings at an angle of 90°.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
362056MLB IRN GF Bend 90 Female Galv. 1/4" £12.85 30% £9.00
362057MLB IRN GF Bend 90 Female Galv. 3/8" £9.55 30% £6.69
362058MLB IRN GF Bend 90 Female Galv. 1/2" £9.35 30% £6.55
362059MLB IRN GF Bend 90 Female Galv. 3/4" £13.30 30% £9.31
362060MLB IRN GF Bend 90 Female Galv. 1" £18.60 30% £13.02
362061MLB IRN GF Bend 90 Female Galv. 1 1/4" £36.25 30% £25.38
362062MLB IRN GF Bend 90 Female Galv. 1 1/2" £43.15 30% £30.21
362063MLB IRN GF Bend 90 Female Galv. 2" £68.10 30% £47.67
362064MLB IRN GF Bend 90 Female Galv. 2 1/2" £148.90 30% £104.23
362065MLB IRN GF Bend 90 Female Galv. 3" £220.85 30% £154.60
362066MLB IRN GF Bend 90 Female Galv. 4" £449.80 30% £314.86
