Socket

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: polypropylene
  • Socket plain fitting
  • Pressure rated to 10 bar
  • Manufactured to DIN 16962
  • Available in sizes from 20mm to 160mm

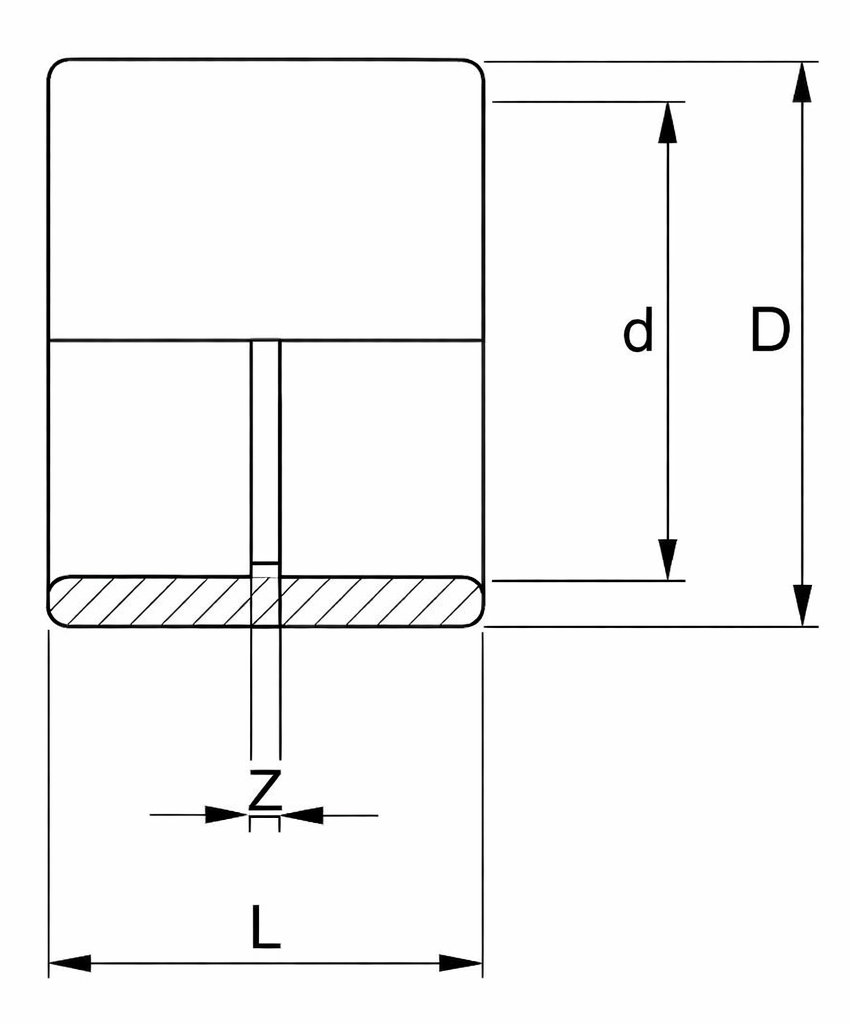

PPh socket plain diagram

Product Code d (mm) D (mm) I (mm) Z (mm) Pressure Rating (bar)
355845 20 27 36 7 10
355846 25 34 41 9 10
355847 32 41 45 9 10
355848 40 52 49 8 10
355849 50 61 53 6 10
355850 63 77 61 6 10
355851 75 92 69 7 10
355852 90 110 81 10 10
355853 110 134 96 13 10
355854 160 188 108 15 10



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

These plain socket pph fittings allow you to join together two pieces of PPh pipe of the same diameter.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
355845PP Socket Plain 20mm £2.80 20% £2.24
355846PP Socket Plain 25mm £2.96 20% £2.37
355847PP Socket Plain 32mm £4.14 20% £3.31
355848PP Socket Plain 40mm £5.01 20% £4.01
355849PP Socket Plain 50mm £8.87 20% £7.10
355850PP Socket Plain 63mm £13.44 20% £10.75
355851PP Socket Plain 75mm £22.03 20% £17.62
355852PP Socket Plain 90mm £27.45 20% £21.96
355853PP Socket Plain 110mm £42.80 20% £34.24
355854PP Socket Plain 160mm £115.04 20% £92.03
