PVC Union Threaded
Useful Information
This PVC union is used to connect two standard BSP threaded fittings together, such as those available in our threaded PVC fittings range.
| Material | Polyvinyl chloride - unplasticised |
| Pressure Rating | up to 15 bar |
| Operating Temperature | 5°C to 60°C |

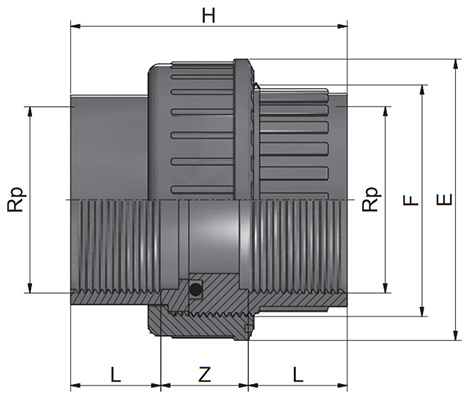

| Product Code | Nominal Size (Inch) | L (mm) | Z1 (mm) | Z2 (mm) | F (Inch) | E (mm) |
| 359821 | 3/8 | 11 | 6 | 14 | 3/4 | 34 |
| 356529 | 1/2 | 15 | 4 | 11 | 1 | 42 |
| 356530 | 3/4 | 16 | 6 | 13 | 1 1/4 | 52 |
| 356531 | 1 | 19 | 6 | 13 | 1 1/2 | 59 |
| 356532 | 1 1/4 | 21 | 8 | 17 | 2 | 72 |
| 356533 | 1 1/2 | 21 | 13 | 24 | 2 1/4 | 79 |
| 356534 | 2 | 26 | 15 | 30 | 2 3/4 | 96 |
| 359822* | 3 | 33 | 23 | 36 | 4 | 134 |
| 359823* | 4 | 39 | 27 | 40 | 5 | 163 |
*Operating pressure rated to 10 bar
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
Approvals:
 |
BSI Kitemark approval KM60041 |
