Union Plain x Thread

Union Plain x Thread

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Material: polyvinyl chloride - unplasticised
  • WRAS approved product (approval number 1705075)

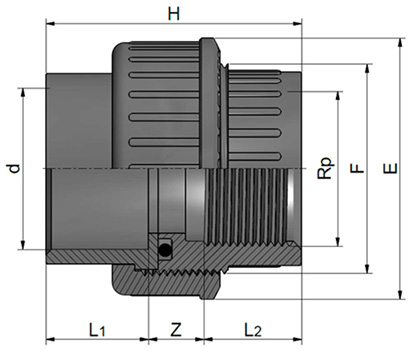

Product Code Nominal Size (Inch) L1 (mm) L2 (mm) Z1 (mm) Z2 (mm) F (Inch) E (mm)
356523 1/2 17 15 3 11 1 42
356524 3/4 20 16 3 13 1 1/4 52
356525 1 23 19 3 13 1 1/2 59
356526 1 1/4 27 21 3 17 2 72
356527 1 1/2 32 21 3 24 2 1/4 79
356528 2 39 26 3 30 2 3/4 96
359788 3 52 33 5 36 4 134
359789 4 61 39 5 40 5 163



Useful Info:

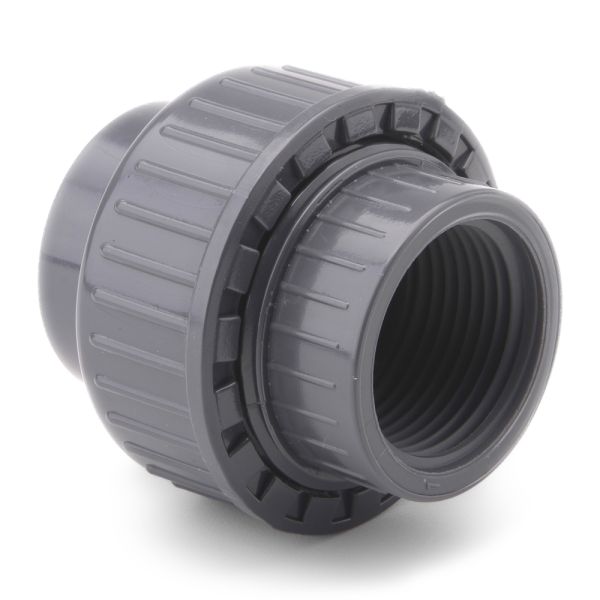

IMPORTANT NOTICE - The thread may be supplied on either end. The image above is for illustrative purposes.

This union fitting is used to join a PVC pipe and a threaded fitting together.

The plain end should be bonded to the pipe using PVC solvent cement, along with cleaner.

The threaded end will connect to a standard BSP threaded fitting, such as those available in our threaded PVC fitting range.

Please note, the WRAS approval is only valid if the following conditions are met:

  • Use with PVC pipe manufactured to BS 3505 class C or class E and EN 1452-2.
  • Maximum operating pressures of 15 bar (1/2" to 6") and 9 bar (8").
  • Use with cold water only.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
PVCu Union Plain x Threaded 1/2"
Code
356523
Product Name
PVCu Union Plain x Threaded 1/2"
List Price
£15.10
You Pay
£3.93
You Save
74%
Qty
PVCu Union Plain x Threaded 3/4"
Code
356524
Product Name
PVCu Union Plain x Threaded 3/4"
List Price
£16.68
You Pay
£4.34
You Save
74%
Qty
PVCu Union Plain x Threaded 1"
Code
356525
Product Name
PVCu Union Plain x Threaded 1"
List Price
£20.75
You Pay
£5.40
You Save
74%
Qty
PVCu Union Plain x Threaded 1 1/4"
Code
356526
Product Name
PVCu Union Plain x Threaded 1 1/4"
List Price
£33.24
You Pay
£8.64
You Save
74%
Qty
PVCu Union Plain x Threaded 1 1/2"
Code
356527
Product Name
PVCu Union Plain x Threaded 1 1/2"
List Price
£33.62
You Pay
£8.74
You Save
74%
Qty
PVCu Union Plain x Threaded 2"
Code
356528
Product Name
PVCu Union Plain x Threaded 2"
List Price
£46.25
You Pay
£12.03
You Save
74%
Qty
PVCu Union Plain x Threaded 3"
Code
359788
Product Name
PVCu Union Plain x Threaded 3"
List Price
£135.19
You Pay
£35.15
You Save
74%
Qty
PVCu Union Plain x Threaded 4"
Code
359789
Product Name
PVCu Union Plain x Threaded 4"
List Price
£183.44
You Pay
£47.69
You Save
74%
Qty
8 products
