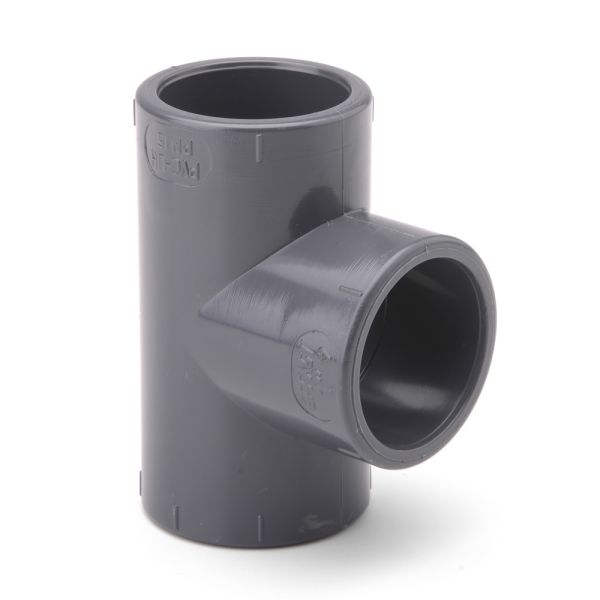

Tee 90° Plain

Useful Information

This tee is used to join three pieces of PVC pipe. PVC solvent cement should be used along with cleaner to bond the pipes and fitting together.



Material Polyvinyl chloride - unplasticised
Pressure Rating Up to 15 bar (size dependent)
Operating Temperature 5°C to 60°C

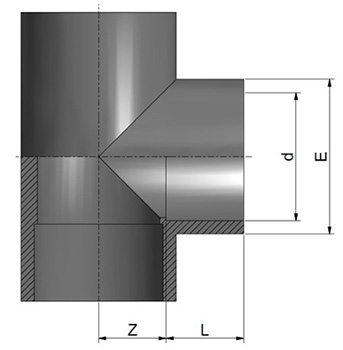

PVC-Tee-90-Diagram


Product Code Nominal Size (inch) L (mm) Z (mm) E (mm)
357158 1/2 17 11 27
357159 3/4 20 14 34
357160 1 23 17 42
357161 1 1/4 27 21 51
357162 1 1/2 31 26 61
357163 2 38 33 75
359423 2 1/2 44 39 89
357164 3 52 47 106
357165 4 63 57 133
359424 5 76 71 163
357166 6 90 81 198
357167 8 119 114 258



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Approvals:

WRAS Approved Product - sold by Pipestock

WRAS approval 1705075

BSI Kitemark Approved Product - sold by Pipestock

BSI Kitemark approval KM60041



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



All text and product images are the intellectual property and copyright of Pipestock Limited

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
357158PVCu Tee 90 Plain 1/2" £3.59 74% £0.93
357159PVCu Tee 90 Plain 3/4" £4.55 74% £1.18
357160PVCu Tee 90 Plain 1" £6.74 74% £1.75
357161PVCu Tee 90 Plain 1 1/4" £9.71 74% £2.52
357162PVCu Tee 90 Plain 1 1/2" £13.92 74% £3.62
357163PVCu Tee 90 Plain 2" £22.18 74% £5.77
359423PVCu Tee 90 Plain 2 1/2" £38.05 74% £9.89
357164PVCu Tee 90 Plain 3" £63.98 74% £16.64
357165PVCu Tee 90 Plain 4" £93.79 74% £24.39
359424PVCu Tee 90 Plain 5" £250.93 74% £65.24
357166PVCu Tee 90 Plain 6" £326.14 74% £84.80
357167PVCu Tee 90 Plain 8" £777.14 74% £202.06
