PVC End Cap Threaded Inch
Technical Specification
- Material: Unplasticised Polyvinyl Chloride (PVCu)
- Sizes: 3/8" to 4"
- Pressure rating: 15 bar
- Temperature range: 5°C to 60°C
- Connection type: Threaded (BSP)
- Colour: Grey
- Standards:
- WRAS approved
- BSI Kitemark-certified
Description
This PVCu threaded end cap is designed to close off the end of a BSP male threaded pipe or fitting within an imperial pipe system. It provides a neat and secure termination point, commonly used for sealing unused outlets, isolating sections of pipework, or creating temporary closures during installation and testing.
Manufactured from corrosion-resistant PVCu, the end cap delivers dependable performance across water supply, industrial and general engineering applications. The accurately formed BSP female thread ensures a secure mechanical seal when installed with a suitable thread sealant, while the robust construction offers long-term durability.
For more information, please visit our PVCu Pressure Pipe Guide!
Key Features & Benefits
- Secure threaded termination: Provides a reliable closure for BSP male threaded connections
- BSP female thread: Ensures a firm mechanical seal when correctly installed
- Corrosion-resistant PVCu: Prevents rust, pitting, and scale build-up
- Durable and robust design: Suitable for permanent or temporary end sealing
- Imperial sizing compatibility: Designed to match standard BSP threaded pipe and fittings
- Easy installation and removal: Ideal for maintenance, testing and future system changes

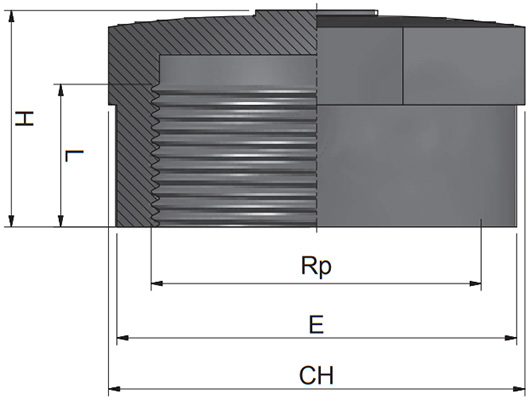

Dimensions
| SKU | Nominal Size (inch) | L (mm) | CH (mm) | H (mm) | E (mm) |
| 359825 | 3/8 | 11.4 | 24 | 22 | 23 |
| 356560 | 1/2 | 15 | 30 | 21 | 28 |
| 356561 | 3/4 | 16.3 | 36 | 23 | 34 |
| 356562 | 1 | 19.1 | 46 | 26 | 42 |
| 356563 | 1 1/4 | 21.4 | 55 | 29 | 51 |
| 356564 | 1 1/2 | 21.4 | 65 | 32 | 61 |
| 356565 | 2 | 26 | 75 | 37 | 75 |
| 356566 | 2 1/2 | 30.2 | 95 | 50 | 89 |
| 356567 | 3 | 33.3 | 105 | 53 | 103 |
| 356568 | 4 | 39.4 | 130 | 59 | 130 |
Downloads
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
