End Cap Plain

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Material: polyvinyl chloride - unplasticised
  • WRAS approved product (approval number 1705075)

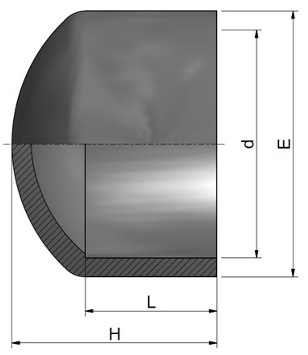

PVC-Cap-Diagram


Product Code Nominal Size (inch) L (mm) H (mm) E (mm)
356550 1/2 17 30 27
356551 3/4 20 34 33
356552 1 23 38 42
356553 1 1/4 27 43 50
356554 1 1/2 31 48 61
356555 2 38 56 75
359392 2 1/2 44 67 89
356556 3 52 78 106
356557 4 63 81 133
359393 5 76 114 162
356558 6 90 127 198
356559 8 119 165 255



Useful Info:

An end cap is used to close off a piece of PVC pipe.

PVC solvent cement should be used along with cleaner to bond the pipe and cap together.

Please note, the WRAS approval is only valid if the following conditions are met:

  • Use with PVC pipe manufactured to BS 3505 class C or class E and EN 1452-2.
  • Maximum operating pressures of 15 bar (1/2" to 6") and 9 bar (8").
  • Use with cold water only.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
356550PVCu Cap Plain 1/2" £2.02 74% £0.53
356551PVCu Cap Plain 3/4" £2.39 74% £0.62
356552PVCu Cap Plain 1" £2.73 74% £0.71
356553PVCu Cap Plain 1 1/4" £4.19 74% £1.09
356554PVCu Cap Plain 1 1/2" £5.82 74% £1.51
356555PVCu Cap Plain 2" £8.55 74% £2.22
359392PVCu Cap Plain 2 1/2" £20.76 74% £5.40
356556PVCu Cap Plain 3" £26.23 74% £6.82
356557PVCu Cap Plain 4" £40.34 74% £10.49
359393PVCu Cap Plain 5" £69.66 74% £18.11
356558PVCu Cap Plain 6" £111.76 74% £29.06
356559PVCu Cap Plain 8" £323.20 74% £84.03
