PVC Elbow 90° Threaded Inch
Technical Specification
- Material: Unplasticised Polyvinyl Chloride (PVCu)
- Sizes: 3/8" to 4"
- Pressure rating: 15 bar
- Temperature range: 5°C to 60°C
- Connection type: Threaded (BSP)
- Colour: Grey
- Standards:
- WRAS approved
- BSI Kitemark-certified
Description
This PVCu 90-degree threaded elbow is designed to change the direction of pipework where BSP threaded connections are required on both ends. It is commonly used to connect valves, pumps, gauges or other threaded components while redirecting flow through a right angle.
Manufactured from corrosion-resistant PVCu, the elbow offers long-term durability in water systems, industrial applications and general engineering environments. The precisely formed threads provide a secure mechanical joint, while the smooth internal bore helps maintain efficient flow through the 90-degree change in direction.
For more information, please visit our PVCu Pressure Pipe Guide!
Key Features & Benefits
- 90-degree direction change: Allows clean pipe routing between threaded components
- BSP threaded connections: Provide secure mechanical joints on both ends
- Corrosion-resistant PVCu: Prevents rust, pitting and scale for long service life
- Smooth internal bore: Helps maintain flow efficiency through the bend
- Imperial sizing compatibility: Designed to work with standard BSP threaded fittings
- Robust and reliable design: Suitable for repeated assembly and maintenance work

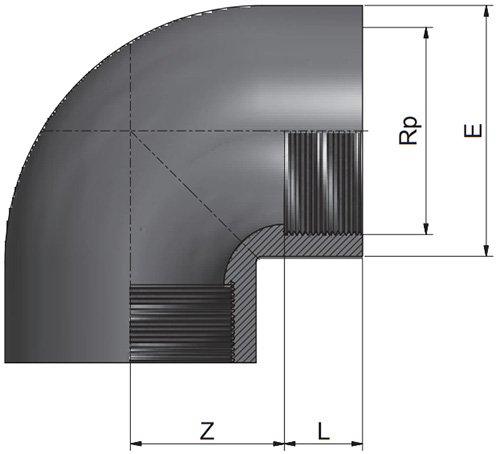

Dimensions
| SKU | Nominal Size (inch) | L (mm) | Z (mm) | E (mm) |
| 359799 | 3/8 | 11.4 | 12 | 24 |
| 356810 | 1/2 | 15 | 13 | 28 |
| 356811 | 3/4 | 16.3 | 17 | 34 |
| 356812 | 1 | 19.1 | 21 | 42 |
| 356813 | 1 1/4 | 21.4 | 27 | 51 |
| 356814 | 1 1/2 | 21.4 | 37 | 62 |
| 356815 | 2 | 26 | 46 | 77 |
| 356816 | 2 1/2 | 30.2 | 53 | 89 |
| 356817 | 3 | 33.3 | 65 | 106 |
| 356818 | 4 | 39.3 | 79 | 129 |
