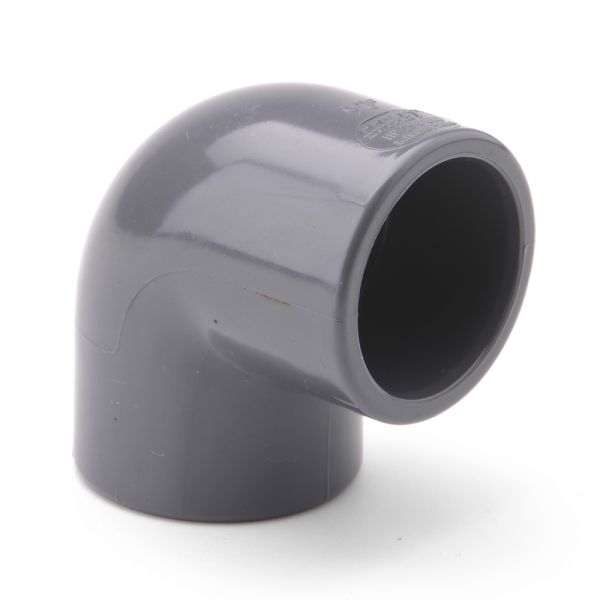

Elbow 90° Plain

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Material: polyvinyl chloride - unplasticised
  • WRAS approved product (approval number 1705075)
  • BSI Kitemark (licence number KM 60041 - 1 1/2", 2", 3", 4" and 6" only)

PVC-Elbow-90-Diagram


Product Code Nominal Size (inch) L (mm) Z (mm) E (mm)
356793 1/2 17 11 27
356794 3/4 20 14 33
356795 1 23 17 41
356796 1 1/4 27 23 51
356797 1 1/2 31 28 61
356798 2 38 34 75
359414 2 1/2 44 40 89
356799 3 52 48 106
356800 4 63 58 133
359415 5 76 72 164
356801 6 90 81 198
356802 8 119 115 258



Useful Info:

This elbow is used to join together two pieces of PVC pipe, creating an angle of 90°. PVC solvent cement should be used along with cleaner to bond the pipes and fitting together.

The pipes to be joined must be of the same diameter.

Please note, the WRAS approval is only valid if the following conditions are met:

  • Use with PVC pipe manufactured to BS 3505 class C or class E and EN 1452-2.
  • Maximum operating pressures of 15 bar (1/2" to 6") and 9 bar (8").
  • Use with cold water only.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
356793PVCu Elbow 90 Plain 1/2" £2.88 74% £0.75
356794PVCu Elbow 90 Plain 3/4" £3.31 74% £0.86
356795PVCu Elbow 90 Plain 1" £4.68 74% £1.22
356796PVCu Elbow 90 Plain 1 1/4" £8.18 74% £2.13
356797PVCu Elbow 90 Plain 1 1/2" £10.53 74% £2.74
356798PVCu Elbow 90 Plain 2" £15.69 74% £4.08
359414PVCu Elbow 90 Plain 2 1/2" £29.45 74% £7.66
356799PVCu Elbow 90 Plain 3" £45.21 74% £11.75
356800PVCu Elbow 90 Plain 4" £67.94 74% £17.66
359415PVCu Elbow 90 Plain 5" £155.59 74% £40.45
356801PVCu Elbow 90 Plain 6" £268.52 74% £69.82
356802PVCu Elbow 90 Plain 8" £636.54 74% £165.50
