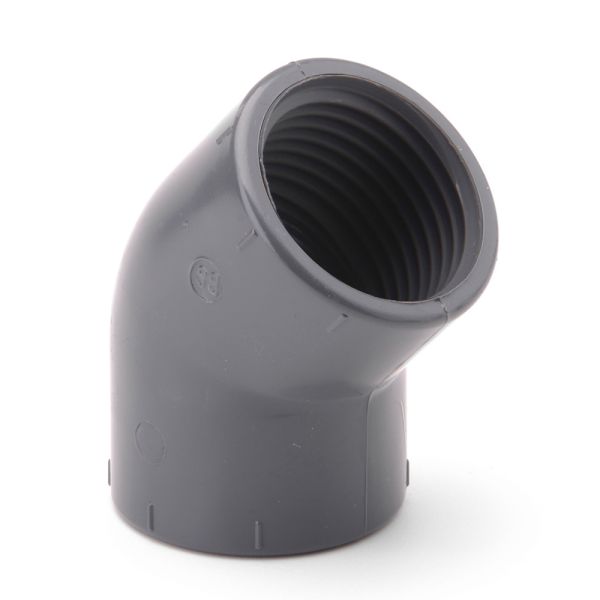

PVC Elbow 45° Threaded Inch
Technical Specification
- Material: Unplasticised Polyvinyl Chloride (PVCu)
- Sizes: 3/8" to 4"
- Pressure rating: 15 bar
- Temperature range: 5°C to 60°C
- Connection type: Threaded (BSP)
- Colour: Grey
- Standards:
- WRAS approved
- BSI Kitemark-certified
Description
This PVCu 45-degree threaded elbow is designed to provide a more gradual change in direction between BSP threaded components within imperial pipe systems. The shallower angle helps reduce turbulence compared with a 90-degree elbow, making it ideal where smoother flow characteristics or gentler pipe routing are required.
Manufactured from corrosion-resistant PVCu, the fitting delivers reliable performance across water systems, industrial installations and general engineering applications. Precisely machined BSP threads ensure secure mechanical joints, while the smooth internal bore supports efficient flow through the angled transition.
For more information, please visit our PVCu Pressure Pipe Guide!
Key Features & Benefits
- Gentle 45-degree direction change: Allows smoother flow and reduced turbulence than sharper bends
- BSP threaded connections: Enable secure mechanical joints on both ends
- Corrosion-resistant PVCu: Provides long service life without rust, scale or pitting
- Smooth internal bore: Helps maintain efficient flow through the elbow
- Imperial sizing compatibility: Designed to match standard BSP threaded fittings
- Suitable for maintenance work: Ideal for systems requiring removable threaded connections
Dimensions
| SKU | Nominal Size (inch) | L (mm) | Z (mm) | E (mm) |
| 359800 | 3/8 | 11 | 8 | 24 |
| 359801 | 1/2 | 15 | 6 | 28 |
| 359802 | 3/4 | 16.3 | 9 | 34 |
| 359803 | 1 | 19.1 | 11 | 42 |
| 359804 | 1 1/4 | 21.4 | 15 | 51 |
| 359805 | 1 1/2 | 21.4 | 22 | 62 |
| 359806 | 2 | 26 | 26 | 77 |
| 359807 | 2 1/2 | 30.2 | 31 | 89 |
| 359808 | 3 | 33.3 | 38 | 106 |
| 359809 | 4 | 39.3 | 46 | 129 |
