PVC Composite Union Plain F x Thread F Brass
Technical Specification
- Materials:
- Unplasticised Polyvinyl Chloride (PVCu)
- Brass
- Sizes: 1/2" to 3"
- Pressure rating: 15 bar
- Temperature range: 0°C to 60°C
- Connection type: Solvent weld
- Colour: Grey/Brass
- Standards:
- WRAS approved
- BSI Kitemark-certified
Description
This composite union combines the benefits of PVCu pipework and brass threaded connections to create a versatile, demountable joint suitable for imperial solvent weld systems. The plain PVCu socket end uses solvent weld jointing for a secure permanent connection with pipe, while the BSP female brass thread provides a durable, corrosion-resistant mechanical connection point for valves, pumps or other equipment.
The three-piece union design features a central nut that allows easy disassembly without cutting the pipework, making it ideal for maintenance, inspection or equipment swaps. With a smooth internal bore and a robust composite build, this fitting is well suited to water supply, irrigation, industrial process and general engineering applications.
For more information, please visit our PVCu Pressure Pipe Guide!
Key Features & Benefits
- Composite material design: Combines PVCu pipework compatibility with durable brass thread strength
- Demountable union joint: Allows quick removal of components without disturbing surrounding pipework
- Strong solvent weld socket: Provides a permanent leak-resistant connection to PVCu pipe
- Brass BSP female thread: Offers a resilient threaded connection for valves, pumps and accessories
- Corrosion-resistant build: PVCu resists rust and scale; brass resists wear in threaded applications
- Smooth internal bore: Supports efficient flow through the union

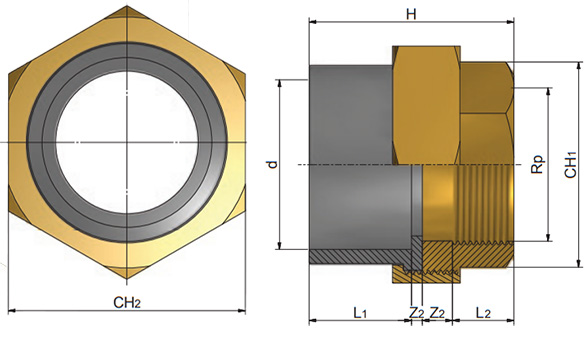

Dimensions
| SKU | Nominal Size / d / Rp (") | L1 (mm) | L2 (mm) | Z1 (mm) | Z2 (mm) | CH1 (mm) | CH2 (mm) | H (mm) |
| 356480 | 1/2 | 16 | 12 | 3 | 9 | 26 | 44 | 40 |
| 356481 | 3/4 | 19 | 13 | 3 | 9 | 32 | 46 | 44 |
| 356482 | 1 | 22 | 16 | 3 | 10 | 38 | 55 | 51 |
| 356483 | 1 1/4 | 27 | 18 | 3 | 11 | 47 | 65 | 59 |
| 356484 | 1 1/2 | 31 | 18 | 4 | 11 | 54 | 72 | 64 |
| 356485 | 2 | 38 | 22 | 4 | 12 | 66 | 88 | 76 |
| 356486 | 2 1/2 | 44 | 24 | 4 | 12 | 82 | 108 | 84 |
| 356487 | 3 | 51 | 31 | 5 | 13 | 95 | 121 | 100 |
