PVC Backnut Threaded
Technical Specification
- Material: Unplasticised Polyvinyl Chloride (PVCu)
- Sizes: 1/2" to 4"
- Pressure rating: 15 bar
- Temperature range: 5°C to 60°C
- Connection type: Threaded (BSP)
- Colour: Grey
- Standards:
- WRAS approved
- BSI Kitemark-certified
Description
This PVCu threaded backnut is designed to secure BSP-threaded fittings through tank walls, panels, or flat surfaces. It is typically used in conjunction with tank connectors, adaptors and threaded fittings to provide a firm mechanical lock on the reverse side of the mounting surface.
Manufactured from corrosion-resistant PVCu, the backnut offers reliable long-term performance in water storage, industrial and general engineering applications. Its robust construction helps maintain a secure fixing without the risk of rust or degradation, making it well-suited to both indoor and outdoor installations.
For more information, please visit our PVCu Pressure Pipe Guide!
Key Features & Benefits
- Secure mechanical fixing: Locks threaded fittings firmly in place through panels or tank walls
- BSP female thread: Compatible with standard BSP male threaded fittings
- Corrosion-resistant PVCu: Prevents rust, scale and long-term degradation
- Durable and lightweight: Easy to handle while providing reliable strength
- Imperial sizing compatibility: Designed to match imperial BSP threaded components
- Ideal for tank installations: Commonly used with tank connectors and threaded adaptors

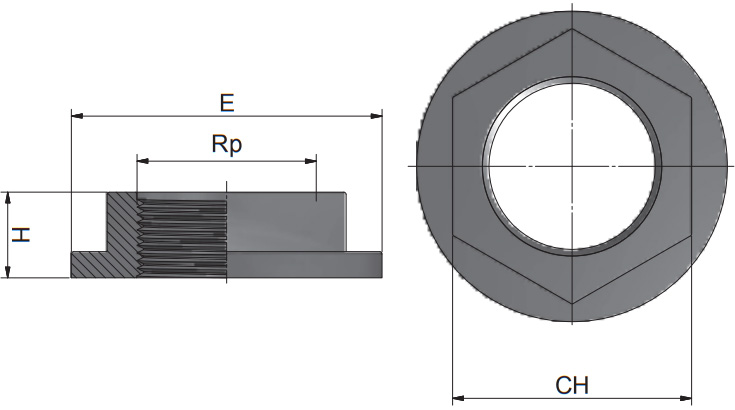

Dimensions
| SKU | Nominal Size (inch) | CH (mm) | H (mm) | E (mm) |
| 356952 | 1/2 | 38 | 13 | 28 |
| 356953 | 3/4 | 43 | 14 | 33 |
| 356954 | 1 | 56 | 16 | 46 |
| 356955 | 1 1/4 | 65 | 18 | 50 |
| 356956 | 1 1/2 | 72 | 19 | 60 |
| 356957 | 2 | 94 | 21 | 80 |
| 356958 | 2 1/2 | 105 | 23 | 95 |
| 356959 | 3 | 125 | 27 | 110 |
| 356960 | 4 | 154 | 31 | 140 |
Downloads
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
