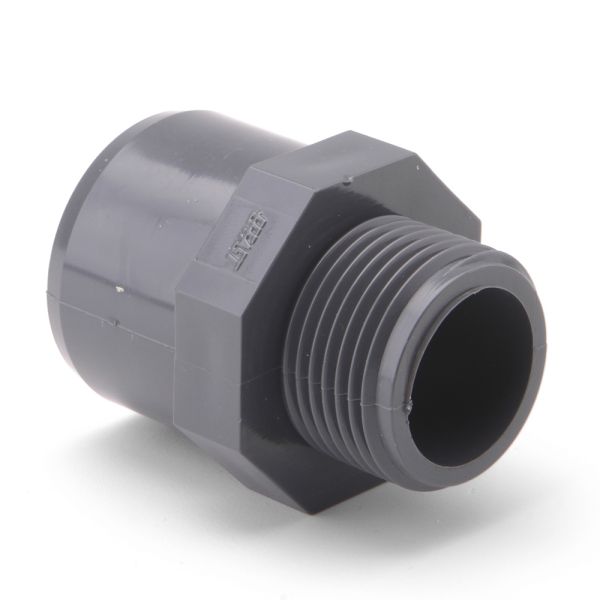

Adaptor Plain F x Thread M

Adaptor Plain F x Thread M

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Material: polyvinyl chloride - unplasticised
  • WRAS approved product (approval number 1705075)

PVC-Adaptor-Female-x-male-Plain-Thread

Product Code Nominal Size (inch) L1 (mm) L2 (mm) L3 (mm) H (mm) O (mm)
356431 1/2 17 20 15 46 30
356432 3/4 20 23 16 50 36
356433 1 23 27 19 57 46
356434 1 1/4 27 32 21 67 55
356435 1 1/2 32 39 21 74 65
356436 2 39 44 26 84 80
359769 2 1/2 44 52 30 99 95
356437 3 52 63 33 113 115
356438 4 63 66 39 120 130



Useful Info:

This adaptor is used to add a male thread connection to a PVC pipe.

The plain end should be bonded to the pipe using PVC solvent cement, along with cleaner.

The threaded end will connect to a standard female BSP threaded fitting, such as those available in our threaded PVC fitting range.

Please note, the WRAS approval is only valid if the following conditions are met:

  • Use with PVC pipe manufactured to BS 3505 class C or class E and EN 1452-2.
  • Maximum operating pressures of 15 bar (1/2" to 6") and 9 bar (8").
  • Use with cold water only.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
PVCu Adaptor Female Plain x Threaded Male 1/2"
Code
356431
Product Name
PVCu Adaptor Female Plain x Threaded Male 1/2"
List Price
£3.47
You Pay
£0.90
You Save
74%
Qty
PVCu Adaptor Female Plain x Threaded Male 3/4"
Code
356432
Product Name
PVCu Adaptor Female Plain x Threaded Male 3/4"
List Price
£3.99
You Pay
£1.04
You Save
74%
Qty
PVCu Adaptor Female Plain x Threaded Male 1"
Code
356433
Product Name
PVCu Adaptor Female Plain x Threaded Male 1"
List Price
£6.20
You Pay
£1.61
You Save
74%
Qty
PVCu Adaptor Female Plain x Threaded Male 1 1/4"
Code
356434
Product Name
PVCu Adaptor Female Plain x Threaded Male 1 1/4"
List Price
£8.48
You Pay
£2.20
You Save
74%
Qty
PVCu Adaptor Female Plain x Threaded Male 1 1/2"
Code
356435
Product Name
PVCu Adaptor Female Plain x Threaded Male 1 1/2"
List Price
£10.93
You Pay
£2.84
You Save
74%
Qty
PVCu Adaptor Female Plain x Threaded Male 2"
Code
356436
Product Name
PVCu Adaptor Female Plain x Threaded Male 2"
List Price
£14.76
You Pay
£3.84
You Save
74%
Qty
PVCu Adaptor Female Plain x Threaded Male 2 1/2"
Code
359769
Product Name
PVCu Adaptor Female Plain x Threaded Male 2 1/2"
List Price
£36.83
You Pay
£9.58
You Save
74%
Qty
PVCu Adaptor Female Plain x Threaded Male 3"
Code
356437
Product Name
PVCu Adaptor Female Plain x Threaded Male 3"
List Price
£43.59
You Pay
£11.33
You Save
74%
Qty
PVCu Adaptor Female Plain x Threaded Male 4"
Code
356438
Product Name
PVCu Adaptor Female Plain x Threaded Male 4"
List Price
£58.74
You Pay
£15.27
You Save
74%
Qty
9 products
