In-Line Filters
Useful Information
Technical Specification
- Material: Polypropylene
- Filter Type: Screen filter cartridge (120 mesh, polyester)
- Thread Type: BSP male threaded connections
- Pressure Rating: Up to 8 bar
- Additional Feature: Integrated bleed plug for flushing
- Cartridge Cleaning: Removable and washable by hand
Description

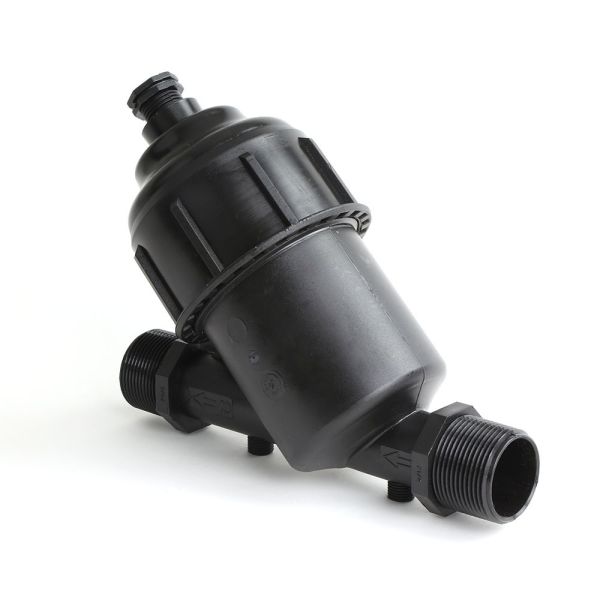

These Y-style in-line filters are fitted with a 120 mesh polyester screen cartridge to effectively remove debris and particulates from fluid systems. Housed in durable polypropylene, they are pressure-rated to 8 bar and incorporate a bleed plug for simple flushing. When needed, the screen cartridge can be easily removed for manual cleaning, supporting reliable system performance with minimal maintenance.
Key Features & Benefits
- Effective Filtration: 120 mesh polyester screen traps fine particles
- Integrated Bleed Plug: Enables convenient in-line flushing
- Easy Maintenance: Cartridge is removable and washable by hand
- Chemical-Resistant Housing: Polypropylene ensures long service life
- Secure Connections: BSP male threads for straightforward pipework integration
- Reliable Operation: Suitable for use in irrigation, industrial, and fluid processing systems
| Product Code | Diameter (inch) | A (mm) | B (mm) | C (mm) | Pressure Rating (bar) | Max. Flow (lt/min) | Filtering Area (cm²) |
| 360103 | 3/4 | 228 | 137 | 106 | 8 | 80 | 120 |
| 360104 | 1 | 228 | 137 | 106 | 8 | 80 | 120 |
| 360105 | 1 1/4 | 228 | 137 | 106 | 8 | 170 | 120 |
| 360106 | 1 1/2 | 290 | 197 | 146 | 8 | 400 | 340 |
| 360107 | 2 | 290 | 197 | 146 | 8 | 430 | 340 |
