Ductile Iron Y Strainer Flanged 25 Bar
Useful Information

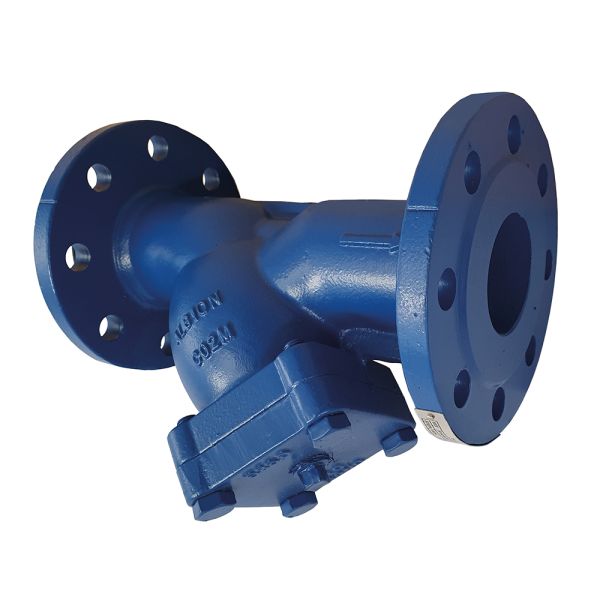

Ductile iron PN25 Y-strainer for flange mounting conforming to BS EN1092.
| Material | Ductile Iron |
| Standards | BS EN558-1 Series 1 |
| Max. Pressure | 25 bar |
| Operating Temperature | -10 to +230°C |
Â
 |
Number | Part Name | Material |
| 1 | Body | Ductile Iron BS EN1563 EN-GJS-450 | |
| 2 | Screen | Stainless Steel - BS970 304S15 | |
| 3 | Bonnet | Ductile Iron BS EN1563 EN-GJS-450 | |
| 4 | Gasket | Non-Asbestos / EPDM | |
| 5 | Bolt | Steel - BS970 43A | |
| 6 | Screw Plug | Stainless Steel - BS970 304S15 | |
| Â | |||
Â
| Product Code | Size (Inch) | L (mm) | D (mm) | D1 (mm) | D2 (mm) | B (mm) | f (mm) | n-d | H (mm) | X (mm) | W (mm) | Weight (Kg) |
| 402781 | 2" | 230 | 165 | 125 | 99 | 19 | 3 | 4-19 | 143 | 1.5 | 2.5 | 9.3 |
| 402782 | 2 1/2" | 290 | 185 | 145 | 118 | 19 | 3 | 8-19 | 165 | 1.5 | 2.5 | 12.4 |
| 402783 | 3" | 310 | 200 | 160 | 132 | 19 | 3 | 8-19 | 195 | 1.5 | 2.5 | 15.3 |
| 402784 | 4" | 350 | 235 | 190 | 156 | 19 | 3 | 8-23 | 226 | 1.5 | 2.5 | 26 |
| 402785 | 5" | 400 | 270 | 220 | 184 | 19 | 3 | 8-28 | 272 | 1.5 | 2.5 | 32 |
| 402786 | 6" | 480 | 300 | 250 | 211 | 20 | 3 | 8-28 | 317 | 1.5 | 2.5 | 46 |
| 402787 | 8" | 600 | 360 | 310 | 274 | 22 | 3 | 12-28 | 372 | 1.5 | 2.5 | 70 |
| 402788 | 10" | 730 | 425 | 370 | 330 | 24.5 | 3 | 12-31 | 457 | 1.5 | 2.5 | 122 |
| 402789 | 12" | 850 | 485 | 430 | 389 | 27.5 | 4 | 16-31 | 550 | 1.5 | 2.5 | 172 |
