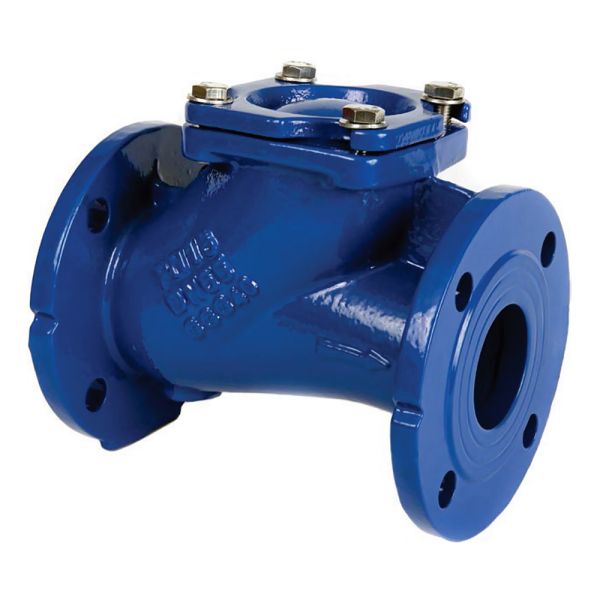

Ball Check Valve Flanged

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: Ductile Iron
  • Flanged Mount PN16
  • Valve Design EN12334
  • Epoxy Coating
  • Working Temperature 0°C - 80°C
Alb-Art-172-diagram Number Part Name Material
1 Body Ductile Iron
2 Ball Metal NBR Coated
3 Cap Ductile Iron
4 Bolt Steel
5 Gasket NBR
Product Code Size (Inch) DN (mm) L (mm) C (mm) H (mm) Weight (Kg)
373098 2" 50 200 106 125 7.7
373099 2 1/2" 65 240 129 145 11.2
373100 3" 80 260 146 160 15.4
373101 4" 100 300 194 180 21.7
373102 5" 125 350 207 210 33
373103 6" 150 400 240 240 45.3
373104 8" 200 500 322 295 90.42
373105 10" 250 600 388 355 163
373106 12" 300 700 458 410 230



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
373098Ductile Iron Flanged Ball Check Valve PN16 2" £272.42 40% £163.45
373099Ductile Iron Flanged Ball Check Valve PN16 2 1/2" £330.95 40% £198.57
373100Ductile Iron Flanged Ball Check Valve PN16 3" £397.93 40% £238.76
373101Ductile Iron Flanged Ball Check Valve PN16 4" £574.95 40% £344.97
373102Ductile Iron Flanged Ball Check Valve PN16 5" £860.95 40% £516.57
373103Ductile Iron Flanged Ball Check Valve PN16 6" £1,096.65 40% £657.99
373104Ductile Iron Flanged Ball Check Valve PN16 8" £2,130.96 40% £1,278.58
373105Ductile Iron Flanged Ball Check Valve PN16 10" £2,219.92 40% £1,331.95
373106Ductile Iron Flanged Ball Check Valve PN16 12" £4,135.94 40% £2,481.56
