Cross

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Material: polypropylene
  • BSP threaded
  • Colour: black
  • Pressure rated to PN10 (10 bar) up to 3" at 20°C and PN6 (6 bar) up to 4" at 20°C
  • Conforms to UNI EN 10226-1, UNI EN 10226-2, ANSI/ASME B1.20.1

Useful Info:

4-way


Product Code A D H L
350277 1/2" 28mm 18mm 18mm
350278 3/4" 35mm 19.5mm 19.5mm
350279 1 1/2" 59.5mm 27mm 100mm
350280 4" 135.5mm 35.5mm 259mm

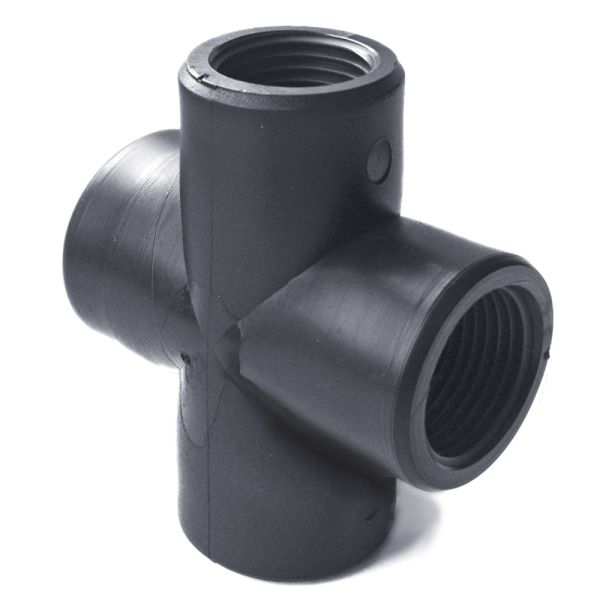

Used to join together 4 pieces of male threaded MDPE pipe of the same dimensions at four angles of 90°.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
350277BLK PP Cross Thread 1/2" £5.19 40% £3.12
350278BLK PP Cross Thread 3/4" £6.92 40% £4.15
350279BLK PP Cross Thread 1 1/2" £41.25 40% £24.75
350280BLK PP Cross Thread 4" £154.62 40% £92.77
