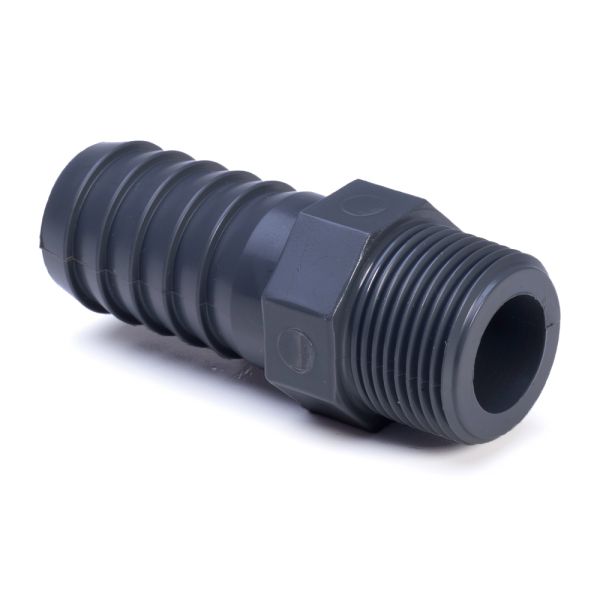

Hose Adaptor Male

Hose Adaptor Male

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: polypropylene
  • Available in sizes from 16mm to 75mm

Polypropylene Hose Adaptor Male

Product Code H (mm) P (mm) P' (mm) D (mm) E (mm) G (mm)
350283 51 15 16 10 25 1/2
350284 52 15 16 10 31 3/4
350285 51 19 20 13 25 1/2
350286 53 19 20 13 31 3/4
350287 83 24 25 17 24 1/2
350288 83 24 25 17 30 3/4
350289 83 24 25 17 35 1
350290 83 31 32 23 35 1
350291 - - 36 - - 1
350292 84 39 40 26 35 1
350293 84 39 40 26 43 1 1/4
350294 84 39 40 26 51 1 1/2
350295 84 49 50 37 51 1 1/2
350296 115 62 63 48 65 2
350297 - - 75 - - 2
350298 131 74 75 60 80 2 1/2



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
BLK PP Hose Tail Barb x Thread 16mm x 1/2"
Code
350283
Product Name
BLK PP Hose Tail Barb x Thread 16mm x 1/2"
List Price
£0.45
You Pay
£0.27
You Save
40%
Qty
BLK PP Hose Tail Barb x Thread 16mm x 3/4"
Code
350284
Product Name
BLK PP Hose Tail Barb x Thread 16mm x 3/4"
List Price
£0.45
You Pay
£0.27
You Save
40%
Qty
BLK PP Hose Tail Barb x Thread 20mm x 1/2"
Code
350285
Product Name
BLK PP Hose Tail Barb x Thread 20mm x 1/2"
List Price
£0.58
You Pay
£0.35
You Save
40%
Qty
BLK PP Hose Tail Barb x Thread 20mm x 3/4"
Code
350286
Product Name
BLK PP Hose Tail Barb x Thread 20mm x 3/4"
List Price
£0.58
You Pay
£0.35
You Save
40%
Qty
BLK PP Hose Tail Barb x Thread 25mm x 1/2"
Code
350287
Product Name
BLK PP Hose Tail Barb x Thread 25mm x 1/2"
List Price
£0.67
You Pay
£0.40
You Save
40%
Qty
BLK PP Hose Tail Barb x Thread 25mm x 3/4"
Code
350288
Product Name
BLK PP Hose Tail Barb x Thread 25mm x 3/4"
List Price
£0.67
You Pay
£0.40
You Save
40%
Qty
BLK PP Hose Tail Barb x Thread 25mm x 1"
Code
350289
Product Name
BLK PP Hose Tail Barb x Thread 25mm x 1"
List Price
£0.76
You Pay
£0.45
You Save
41%
Qty
BLK PP Hose Tail Barb x Thread 32mm x 1"
Code
350290
Product Name
BLK PP Hose Tail Barb x Thread 32mm x 1"
List Price
£0.76
You Pay
£0.45
You Save
41%
Qty
BLK PP Hose Tail Barb x Thread 36mm x 1"
Code
350291
Product Name
BLK PP Hose Tail Barb x Thread 36mm x 1"
List Price
£0.76
You Pay
£0.45
You Save
41%
Qty
BLK PP Hose Tail Barb x Thread 40mm x 1"
Code
350292
Product Name
BLK PP Hose Tail Barb x Thread 40mm x 1"
List Price
£0.94
You Pay
£0.56
You Save
40%
Qty
BLK PP Hose Tail Barb x Thread 40mm x 1 1/4"
Code
350293
Product Name
BLK PP Hose Tail Barb x Thread 40mm x 1 1/4"
List Price
£0.94
You Pay
£0.56
You Save
40%
Qty
BLK PP Hose Tail Barb x Thread 40mm x 1 1/2"
Code
350294
Product Name
BLK PP Hose Tail Barb x Thread 40mm x 1 1/2"
List Price
£0.94
You Pay
£0.56
You Save
40%
Qty
BLK PP Hose Tail Barb x Thread 50mm x 1 1/2"
Code
350295
Product Name
BLK PP Hose Tail Barb x Thread 50mm x 1 1/2"
List Price
£4.73
You Pay
£2.84
You Save
40%
Qty
BLK PP Hose Tail Barb x Thread 63mm x 2"
Code
350296
Product Name
BLK PP Hose Tail Barb x Thread 63mm x 2"
List Price
£11.36
You Pay
£6.82
You Save
40%
Qty
BLK PP Hose Tail Barb x Thread 75mm x 2"
Code
350297
Product Name
BLK PP Hose Tail Barb x Thread 75mm x 2"
List Price
£13.27
You Pay
£7.96
You Save
40%
Qty
BLK PP Hose Tail Barb x Thread 75mm x 2 1/2"
Code
350298
Product Name
BLK PP Hose Tail Barb x Thread 75mm x 2 1/2"
List Price
£13.27
You Pay
£7.96
You Save
40%
Qty
16 products
