Universal Elbow

Useful Information

Our compression universal elbow fittings are available in sizes from 15-21mm x 25mm to 59-61mm to 27-34mm x 32mm.

These elbow fittings are designed to join MDPE pipe with MDPE, PVC, ABS copper, stainless steel, galvanised iron, or lead pipe, at angle of 90%deg;.

Universal elbows are pre-assembled and ready for use. Simply insert your chosen pipe into the fitting and tighten the nut. The UTC ends contain hard stainless steel gripping teeth which provide superior end load resistance.



Pressure Rating 12.5 bar at 20°C
Materials polypropylene (body), polypropylene (spacer), acetal (split ring), nitrile rubber (seal)

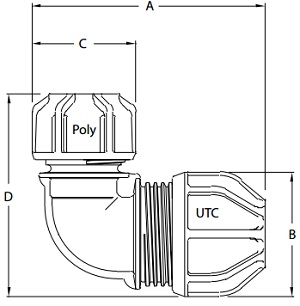

UTC - Elbow

Product Code A (mm) B (mm) C (mm) D (mm)
355076 112 54 55 98
355077 119 66 55 106
355078 132 66 67 117
355079 132 80 55 118
355080 142 80 67 126



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
355076PM UTC Elbow 15-21mm x 25mm £22.09 40% £13.25
355077PM UTC Elbow 21-27mm x 25mm £22.09 40% £13.25
355078PM UTC Elbow 21-27mm x 32mm £26.24 40% £15.74
355079PM UTC Elbow 27-34mm x 25mm £26.24 40% £15.74
355080PM UTC Elbow 27-34mm x 32mm £26.24 40% £15.74
