MDPE Plastic Wall Plate Elbow
Technical Specification
- Type: Compression Wall Plate Elbow with BSP Female Thread
- Connection Type: Compression x Female Thread
- Approvals: WRAS
- Size Range: 20mm x 1/2" to 25mm x 3/4"
- Material Composition:
- Body: High-impact polypropylene (UV stabilised)
- Grip Ring: Acetal resin (POM)
- Seal: Nitrile rubber (NBR)
- Reinforcement Ring: Stainless steel (AISI 430)
- Operating Pressure: Up to 16 bar at 20°C
- Temperature Range: -10°C to +60°C
- Thread Standard: BSP (British Standard Pipe) Female
- Standards Compliance: BS EN 12201, ISO 17885
- Pipe Compatibility: MDPE pipe of matching outer diameter
Liner Requirement: Pipe liners (stiffeners) are strongly recommended for all compression joints
Description
The MDPE Plastic Wall Plate Elbow is designed to connect MDPE pipe to a threaded fitting, such as a bib tap, at a 90° angle, while also allowing for secure wall or surface mounting. Ideal for outdoor taps and service connections, this fitting combines strength, ease of installation, and long-term reliability. Manufactured from high-impact polypropylene with a reinforced design, it provides excellent resistance to environmental stress and pressure. The use of pipe liners is strongly recommended to ensure joint integrity where MDPE is connected.
Key Features & Benefits
- Secure 90° Connection: Connects MDPE pipe to threaded outlets such as bib taps while enabling clean directional changes.
- Wall-Mountable: Integrated plate allows for secure attachment to external or internal flat surfaces.
- Corrosion-Resistant Materials: Constructed from UV-stabilised polypropylene and stainless steel for long service life outdoors.
- High Sealing Integrity: Nitrile rubber gasket and acetal grip ring ensure a strong, watertight seal under pressure.
- Fast, Tool-Free Installation: Push-fit compression design simplifies installation and maintenance.
- Durable in Harsh Conditions: Withstands mechanical stress, frost, and temperature fluctuations, making it ideal for outdoor systems.
- Pipe Liner Compatible: Use of stiffeners reinforces MDPE pipe ends and ensures reliable compression sealing.

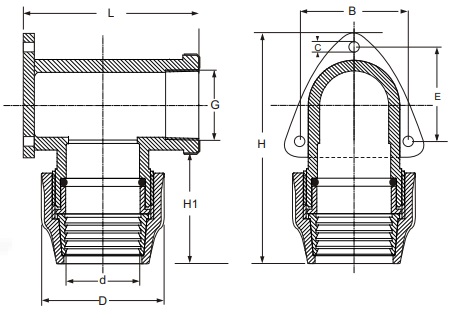

Dimensions
| Product Code | Manufacturer Code | Nominal Size | D (mm) | L (mm) | H (mm) | H1 (mm) | B (mm) | E (mm) | C (mm) |
| 402739 | 56965-2-B | 20mm x 1/2" | 47 | 68.5 | 101 | 54 | 36 | 32 | 5 |
| 402740 | 56965-3-B | 25mm x 1/2" | 54 | 75 | 112 | 58 | 39.5 | 35 | 5 |
| 402741 | 56965-3-C | 25mm x 3/4" | 54 | 75 | 112 | 58 | 39.5 | 35 | 5 |
