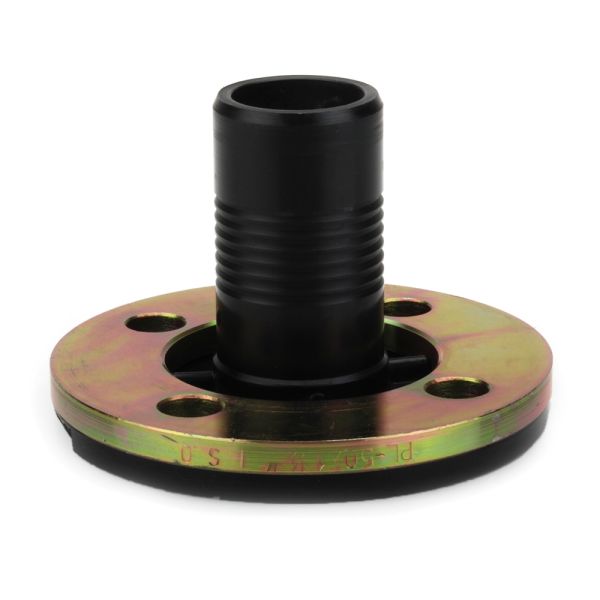

Spigot Flange Adaptor

• Type: Spigot Flange Adaptor
• Connection Type:
• Spigot end: Inserts into MDPE compression fitting
• Flanged end: Standard flange pattern (EN 1092-1 compatible)
• Size Range: 50mm x 1 1/2" to 110mm x 5"
• Material Composition:
• Body: High-impact polypropylene (UV stabilised)
• Flange Face: May include reinforcement (varies by size and manufacturer)
• Operating Pressure: Up to 16 bar at 20°C
• Temperature Range: -10°C to +60°C
• Standards Compliance: ISO 17885, UNI EN 12201, WRAS
• Flange drilling: EN 1092-1 / ISO 7005-1 standards
• Pipe Compatibility: Compatible with standard MDPE compression fittings

The Spigot Flange Adaptor is designed to create a reliable connection between a compression fitting and a flanged system component. This fitting features a spigot end that can be inserted into a standard compression fitting and a flanged end for direct connection to valves, pumps, or rigid pipework. Commonly used in water supply, irrigation, and civil infrastructure systems, it provides a versatile solution for transitioning between compression and flanged connections. Ideal for both above-ground and buried installations.

• Compression to Flange Transition: Provides a simple and effective way to connect compression fittings to flanged components.
• Versatile Application: Suitable for water networks, irrigation systems, and industrial fluid handling.
• Robust Construction: UV-stabilised polypropylene ensures durability and resistance to environmental stress.
• Wide Compatibility: Works with various compression fittings and standard flange patterns.
• Quick Installation: Spigot end inserts easily into existing compression fittings—no need for threading or welding.
• Standards-Compliant Design: Meets international specifications for pressure-rated water systems.
