Flange Adaptor

Useful Information

Our compression flange adaptor fittings are available in sizes from 50mm x 1 1/2" to 110mm x 4".

This flanged adaptor fitting connects a length of MDPE pipe to a flange.

To maintain a rigid and reliable joint connection, it is highly advised that a pipe liner (also known as a stiffener or insert) is also used.

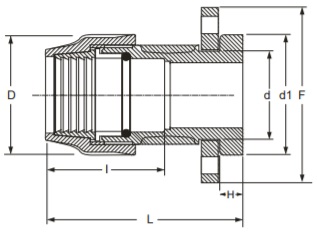

Flange Adaptor

Product Code Size D (mm) L (mm) I (mm) H (mm) d (mm) d1 (mm) F (mm)
352113 50 x 1 1/2" 91 163 114 17,5 59,5 89,5 152
352115 63 x 2" 107 184 127,5 17,5 77 103 165
352116 75 x 2 1/2" 125 197 143 19,5 88 122 185
352118 90 x 3" 150 237 182,5 20 108 138 200
352112 100 x 4" 176 276,5 211 24 131 158 220



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
352113Flanged Adaptor 50mm x 1 1/2" £32.05 60% £12.82
352114Flanged Adaptor 50mm x 2" £40.00 60% £16.00
352115Flanged Adaptor 63mm x 2" £44.83 60% £17.93
352116Flanged Adaptor 75mm x 2 1/2" £59.82 60% £23.93
352117Flanged Adaptor 75mm x 3" £64.73 60% £25.89
352118Flanged Adaptor 90mm x 3" £79.72 60% £31.89
352119Flanged Adaptor 90mm x 4" £88.84 60% £35.54
352112Flanged Adaptor 110mm x 4" £120.47 60% £48.19
