Elbow 90 F Thread

Useful Information

Our compression elbow with female thread fittings are available in sizes from 20mm x 1/2" to 110mm x 4"

This elbow fitting connects between a length of MDPE pipe and a male threaded fitting, at an angle of 90°, whilst providing a strong and secure joint.

To maintain a rigid and reliable joint connection, it is highly advised that a pipe liner (also known as a stiffener or insert) is also used.



Elbow 90 Female Thread

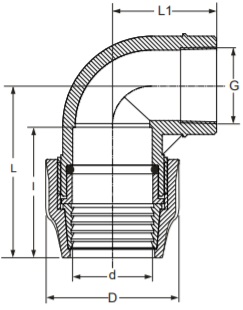

Product Code dxG (mm x Inch) D (mm) L (mm) I (mm) L1 (mm)
352140 20 x 1/2" 47 71.5 61.5 43
352141 20 x 3/4" 47 71.5 61.5 44
352142 25 x 1/2" 54 81 42 50
352143 25 x 3/4" 54 81 78.5 51.5
352144 25 x 1" 54 81 42 53.5
352145 32 x 3/4" 63.5 90 72.5 52
352146 32 x 1" 63.5 90 72.5 53.5
352147 40 x 1" 76 107 87 63
352148 40 x 1 1/4" - - - -
352149 50 x 1 1/2" 91.5 123 97.5 72.5
352150 50 x 2" 91.5 123 97.5 74.5
352151 63 x 2" 110.5 147 112.5 84
352152 75 x 2 127.5 168 129 100
352153 75 x 2 1/2" 127.5 168 129 100
352154 90 x 3" 150 201 153.5 115
352139 110 x 4" 176.5 240 183.5 128



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
352140MDPE Elbow 90 Female Threaded 20mm x 1/2" £3.66 60% £1.46
352141MDPE Elbow 90 Female Threaded 20mm x 3/4" £3.66 60% £1.46
352142MDPE Elbow 90 Female Threaded 25mm x 1/2" £4.42 60% £1.77
352143MDPE Elbow 90 Female Threaded 25mm x 3/4" £4.42 60% £1.77
352144MDPE Elbow 90 Female Threaded 25mm x 1" £4.42 60% £1.77
352145MDPE Elbow 90 Female Threaded 32mm x 3/4" £5.46 60% £2.18
352146MDPE Elbow 90 Female Threaded 32mm x 1" £5.46 60% £2.18
352147MDPE Elbow 90 Female Threaded 40mm x 1" £9.53 60% £3.81
352148MDPE Elbow 90 Female Threaded 40mm x 1 1/4" £9.53 60% £3.81
352149MDPE Elbow 90 Female Threaded 50mm x 1 1/2" £13.26 60% £5.30
352150MDPE Elbow 90 Female Threaded 50mm x 2" £13.26 60% £5.30
352151MDPE Elbow 90 Female Threaded 63mm x 2" £16.16 60% £6.46
352152MDPE Elbow 90 Female Threaded 75mm x 2" £33.16 60% £13.26
352153MDPE Elbow 90 Female Threaded 75mm x 2 1/2" £43.29 60% £17.32
352154MDPE Elbow 90 Female Threaded 90mm x 3" £57.09 60% £22.84
352139MDPE Elbow 90 Female Threaded 110mm x 4" £85.45 60% £34.18
