MDPE Elbow 90° Male Thread
Technical Specification
- Type: 90° Compression Elbow with Male Thread
- Connection Type: Compression x Male Thread
- Approvals: WRAS
- Size Range: 20mm x 1/2" to 90mm x 3"
- Material Composition:
- Body: High-impact polypropylene (UV stabilised)
- Grip Ring: Acetal resin (POM)
- Seal: Nitrile rubber (NBR)
- Operating Pressure: Up to 16 bar at 20°C (size dependent)
- Temperature Range: -10°C to +60°C
- Thread Standard: BSP (British Standard Pipe) Male
- Standards Compliance: BS EN 12201, ISO 17885
- Pipe Compatibility: MDPE pipe of matching outer diameter
Liner Requirement: Pipe liners (stiffeners) are strongly recommended for all compression joints
Description
This compression elbow fitting is designed to connect MDPE pipe to a female BSP threaded fitting at a 90° angle, ensuring a robust and watertight joint. It’s suitable for a range of fluid distribution systems, including potable water, irrigation, and industrial applications. Manufactured for long-term performance and ease of installation, it is ideal for use in both above- and below-ground piping systems. The use of a pipe liner (stiffener) is strongly recommended in all compression joints to maintain joint strength and alignment.
Key Features & Benefits
- Right-Angle Transition: Enables a reliable 90° connection from MDPE pipe to a female BSP-threaded fitting.
- Secure Mechanical Joint: Delivers a leak-free seal under pressure without the need for solvent welding or heat.
- Quick Push-Fit Assembly: No disassembly required before inserting the pipe—reduces installation time and labour.
- Durable, UV-Stabilised Body: Designed for longevity in exposed or buried environments.
- Resistant to Corrosion and Stress: Withstands chemical and mechanical wear in demanding fluid systems.

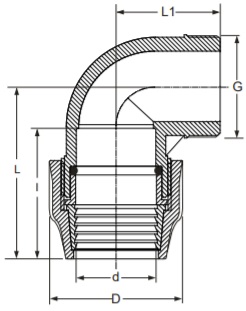

Dimensions
| Product Code | Manufacturer Code | dxG (mm x Inch) | D (mm) | L (mm) | I (mm) | L1 (mm) |
| 352120 | 56925-2-B | 20 x 1/2" | 47 | 71.5 | 61.5 | 43 |
| 352121 | 56925-2-C | 20 x 3/4" | 47 | 71.5 | 61.5 | 44 |
| 352122 | 56925-3-B | 25 x 1/2" | 54 | 81 | 42 | 50 |
| 352123 | 56925-3-C | 25 x 3/4" | 54 | 81 | 42 | 51.5 |
| 352124 | 56925-3-D | 25 x 1" | 54 | 81 | 42 | 53.5 |
| 352125 | 56925-4-C | 32 x 3/4" | 63.5 | 90 | 72.5 | 54 |
| 352126 | 56925-4-D | 32 x 1" | 63.5 | 90 | 72.5 | 56 |
| 352127 | 56925-4-E | 32 x 1 1/4" | 63.5 | 90 | 72.5 | 58 |
| 352128 | 56925-6-D | 40 x 1" | 76 | 107 | 87 | 63 |
| 352129 | 56925-6-E | 40 x 1 1/4" | 76 | 107 | 87 | 65 |
| 352130 | 56925-6-F | 40 x 1 1/2" | 76 | 107 | 87 | 66.5 |
| 352131 | 56925-6-G | 40 x 2" | 76 | 107 | 87 | 68 |
| 352132 | 56925-7-E | 50 x 1 1/4" | 91.5 | 123 | 97.5 | 72.5 |
| 352133 | 56925-7-F | 50 x 1 1/2" | 91.5 | 123 | 97.5 | 74.5 |
| 352134 | 56925-7-G | 50 x 2" | 91.5 | 123 | 97.5 | 74.5 |
| 352135 | 56925-8-F | 63 x 1 1/2" | 110.5 | 147 | 112.5 | 84 |
| 352136 | 56925-8-G | 63 x 2" | 110.5 | 147 | 112.5 | 84 |
| 352137 | 56925-9-G | 75 x 2 | 127.5 | 168 | 129 | 100 |
| 352138 | 56925-10-L | 90 x 3" | 150 | 201 | 153.5 | 114 |
