Connection Type: Spigot insertion (used with electrofusion coupler)
Size Range: 32 - 315mm
Material Composition: PE100 high-density polyethylene
Pressure Rating: PN16 – 16 bar, gas - PE100 SDR11
Temperature Range: 0°C to +40°C (cold water systems)
Standards Compliance:
BS EN 1555 (Gas applications)
BS EN 12201 (Water applications)
WIS 4-32-14 & WIS 4-32-15
Kiwa approved for potable water use
Pipe Compatibility:MDPE pipe (matching internal diameter for spigot insertion)
Installation Note: Used in conjunction with an electrofusion coupler or compatible fitting
Description
The MDPE Electrofusion Spigot End Plug is designed to permanently seal the end of an MDPE pipe by inserting directly into the pipe bore and welding via electrofusion. Ideal for terminating lines in water and gas distribution networks, this fitting is constructed from high-quality PE100 polyethylene and is Kiwa approved for use in potable water systems. It provides a compact, high-integrity seal and is particularly useful in confined spaces or when a lower-profile termination is required.
Key Features & Benefits
Internal Pipe Termination: Seals off MDPE pipe internally using a spigot-style insertion and electrofusion joint.
Compact Design: Low-profile solution, ideal for confined areas or where space is limited.
Durable PE100 Construction: Offers long-term strength, chemical resistance, and pressure performance.
Compliant with Industry Standards: Fully certified for use in gas and water infrastructure projects.
Kiwa Approved: Safe for potable water systems under UK and European regulations.
Simple Fusion Process: Easily installed using standard electrofusion equipment and couplers.

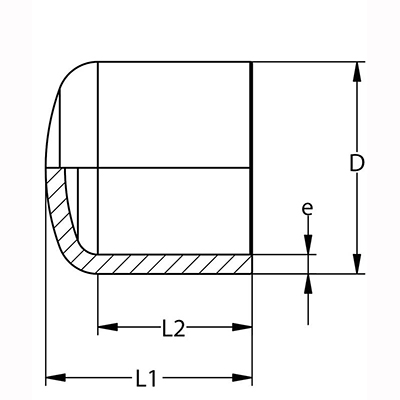

SKU
Supplier Code
D (mm)
e (mm)
L1 mm)
L2 (mm)
370557
PS2443080015
32
3.0
57
48
370558
PS2443100015
50
4.6
74
58
370559
PS2443110015
63
5.8
80
66
370560
PS2443120015
75
6.8
80
67
370561
PS2443130015
90
8.2
91
73
370562
PS2443140015
110
10.0
107
82
370563
PS2443150015
125
11.4
125
94
370564
PS2443160015
140
12.7
138
110
370565
PS2443170015
160
14.6
152
120
370566
PS2443180015
180
16.4
168
132
370567
PS2443190015
200
18.2
184
143
370568
PS2443200015
225
20.5
202
163
370569
PS2443210015
250
22.7
218
170
370570
PS2443220015
280
25.4
227
182
370571
PS2443230015
315
28.6
245
190
